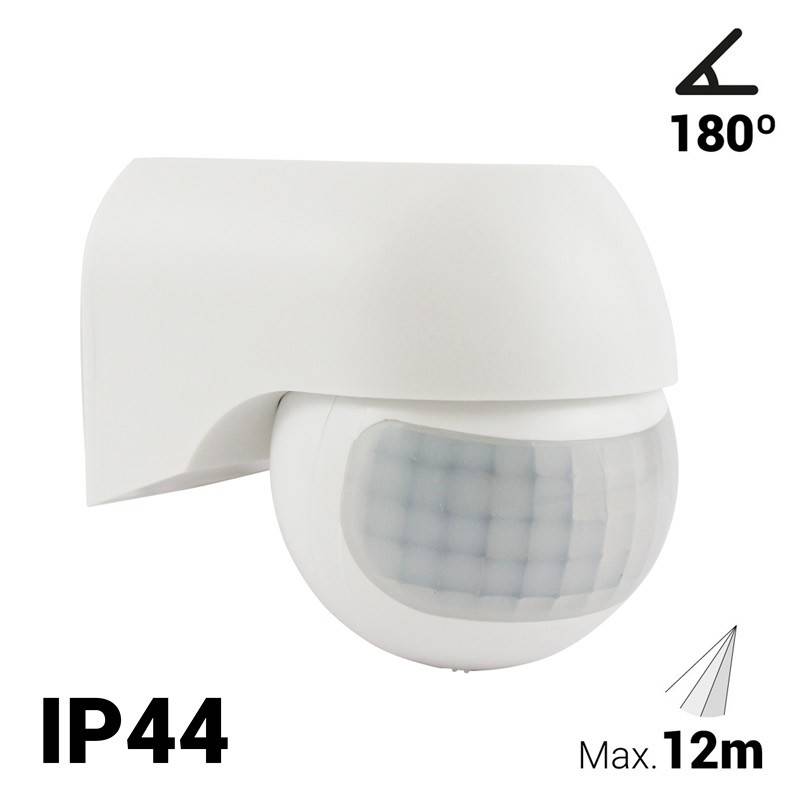

Infrared motion sensor PIR orientable IP44

The most important features of this sensor are that it is capable of detecting light both at night and during the day with a built-in brightness regulator, allowing for significant energy savings and utilizing the energy of the luminaires more effectively. Additionally, it has an IP44 waterproof rating, which means it can be installed both indoors and outdoors.

Thanks to this, the sensor will detect the presence of people and will automatically turn on the lights. Once it detects that there is no one within its range, it will turn off the lights.

Motion sensor to save on the electricity bill, suitable for both residential and industrial use. This infrared detector is designed to be oriented, thereby improving its effectiveness. Intended for indoor application.

High-efficiency adjustable motion detector

Thanks to the predefined and adjustable time between 10 seconds and 7 minutes, the detector will turn off at the desired time. The shutdown time and the device's sensitivity can be adjusted based on the ambient light (ranging from <10 to 2000 LUX). If the "LUX" value is set to the "SUN" symbol, it will operate during both day and night.

This surface-mounted PIR infrared motion sensor can be easily oriented to make the most of the product. This way, the detection range can be adjusted to best meet the desired needs.

180 ° working field sensor, range of up to 12m, IP44 protection class (Protection against splash water).

Automatically detects day and night. You can adjust the ambient light sensor to your liking: Set to the SOL value to operate during both day and night. Set to the minimum LUX value to work in nighttime conditions (less than 3 lux ambient). For other lighting conditions, try different settings. The timer function adds a time delay for turning on and off. You can orient this motion detector to enhance its effectiveness.

• ✔ Voltage: 220 - 240V/AC
• ✔ Frequency: 50Hz
• ✔ Light sensor: from 10 to -2000 LUX (adjustable)
• ✔ Timer: min: 10sec±3sec. max: 7min±2min
• ✔Rated capacity: 2000W (incandescent bulb)
• ✔1000W (energy-saving bulb)
• ✔Detection distance: 12m max (<24ºC)
• ✔Sensor angle: 180°
• ✔Operating temperature: -20—+40ºC
• ✔Supported humidity: <93%RH
• ✔Recommended height: 1.8m - 2.5m
• ✔Consumption: 0.9W (in operation) 0.9W (standby)
• ✔Detection speed: 0.6-1.5 m/s

Installation of surface sensor for exterior or interior

• Loosen the screw at the bottom.
• Pass the power cable through the grommet hole at the bottom. Connect the power cable according to the wiring diagram.
• Attach the sensor to the wall with the screw.
• tighten the screw at the bottom.

Compatible with most LED fixtures and can be adjusted to work only at night or all the time, adapting to the needs of each room. Detection angle of 180 degrees.

Avoid pointing the detector at highly reflective objects such as mirrors, or near heat sources.
