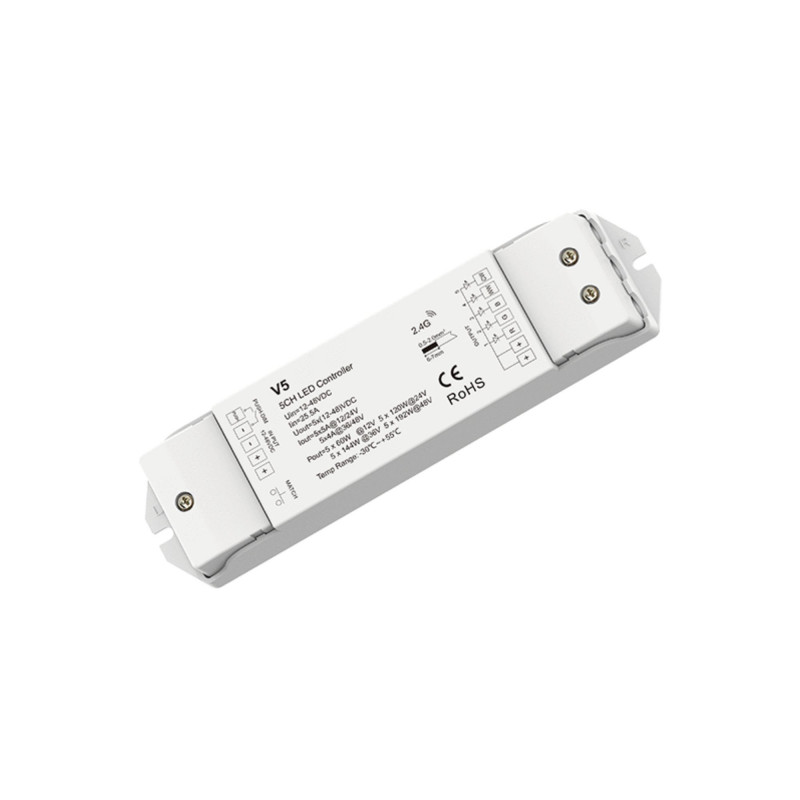

RGB+CCT Controller 12-48V DC - 25A (5A/channel) - RF 2.4G - PUSH dimmer - Skydance

https://new.barcelonaled.com/web/image/product.template/4505/image_1920?unique=79e239b

RGB + CCT Controller with 3 channels for LED luminaires of 12-48V.

It features 10 preset dynamic modes.

Offers a smooth dimming from 0 to 100% without flicker and is compatible with 2.4G RF Skydance remote controls.

It is adjustable by PUSH.

It has a "auto-transmission" and "auto-synchronization" function, allowing signals to be sent to other controllers and synchronizing them when controlled by the same remote.

Ref. SK-V5

30.00 € 30.0 EUR 30.00 € Tax Included

24.78 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Certs CE | ROHS
Connectivity RF
Color control RGB+CCT
Dimensions (mm) LxWxH 175 X 45 X 27
Control distance 30 minutes
Guarantee 5 years
Maximum intensity (A) 5A/CH: 12-24V 4A/CH: 36-48V
IP IP20
Number of channels 5
Power (W) 5 x 60: 12V 5 x 120: 24V 5 x 144: 36V 5 x 192: 48V
Nominal Voltage (V) 12-48VDC
Outdoor Use No
Product Image

RGB + CCT Controller 12-48V DC - 25A - RF 2.4G - PUSH dimmer

This RGB + CCT controller is a versatile and comprehensive solution for light management in both residential and commercial environments.

Allows for the control of RGB + CCT LED luminaires from 12 to 48V DC.

Includes 10 predefined dynamic modes, from jumps to smooth color transitions.

Offers a smoooth dimming, flicker-free, range of 0-100% in 4096 levels.

Allows you to adjust the lighting from anywhere in the room, thanks to its compatibility with RF 2.4G RGB + CCT Skydance remote controls for one or multiple zones (see related products). Additionally, a single controller can accept up to 10 remote controls.

It supports a maximum load capacity of 25A (5A/channel - 12-24V and 4A/channel - 36-48V).

To ensure safety and durability, it is equipped with protection against overheating, overload, and short circuit.

Innovative features:

  • Auto-transmission: A receiver can send signals to another receiver within 30 meters, extending the range of the remote control.
  • Auto-sync: Several receivers within 30 meters can work together when controlled by the same remote, ensuring uniform lighting.


It is important to note that the communication distance between receivers can reach up to 30 meters, but the presence of metallic materials or strong signal sources such as WiFi routers or microwave ovens can affect the range. It is recommended that, for indoor applications, the distance between the receivers should not exceed 15 meters to ensure optimal performance.

  • Function "Light on/off fade time"-: offers the option to select a dimming time when turning the light on or off, with a smooth transition of 3 seconds that provides a more pleasant and comfortable lighting experience.


PUSH Regulation:

It can be connected to an external switch for ON/OFF functions, color change, hue adjustment, and 0-100% dimming.

      • Doble clic ON/OFF: Cambia modo color a CCT y vicersa
      • Press and hold OFF (>1s): in RGB mode adjusts the speed. In CCT mode adjusts the color temperature UP/DOWN
      • Press and hold ON (>1s): in RGB mode, it turns the color change on/off. In CCT mode, it adjusts the UP/DOWN dimming.

If more than one controller is connected to the same push button switch, press and hold ON for more than 10 seconds, then the system synchronizes and all the lights in the group dim to 100%. This means no additional synchronization wiring is needed for larger installations. We recommend that the number of controllers connected to a push button switch does not exceed 25 units. The maximum length of the cables from the push button to the controller should not exceed 20 meters.
