Dual white CCT controller for LED strips with RF touch panel - 5-24V/DC

https://new.barcelonaled.com/web/image/product.template/3568/image_1920?unique=c426b91

The dual white CCT controller for LED strips allows you to control the lighting of CCT LED strips through a soft and highly sensitive touch panel, enabling you to change the shades of white and their intensity.

In addition, it stores the user's settings and can be easily mounted on the wall using two adhesive strips (included), or with two screws (not included).

Compatible with most CCT LED strips on the market. Maximum range: 15 m.

Ideal for creating environments with personalized lighting easily.

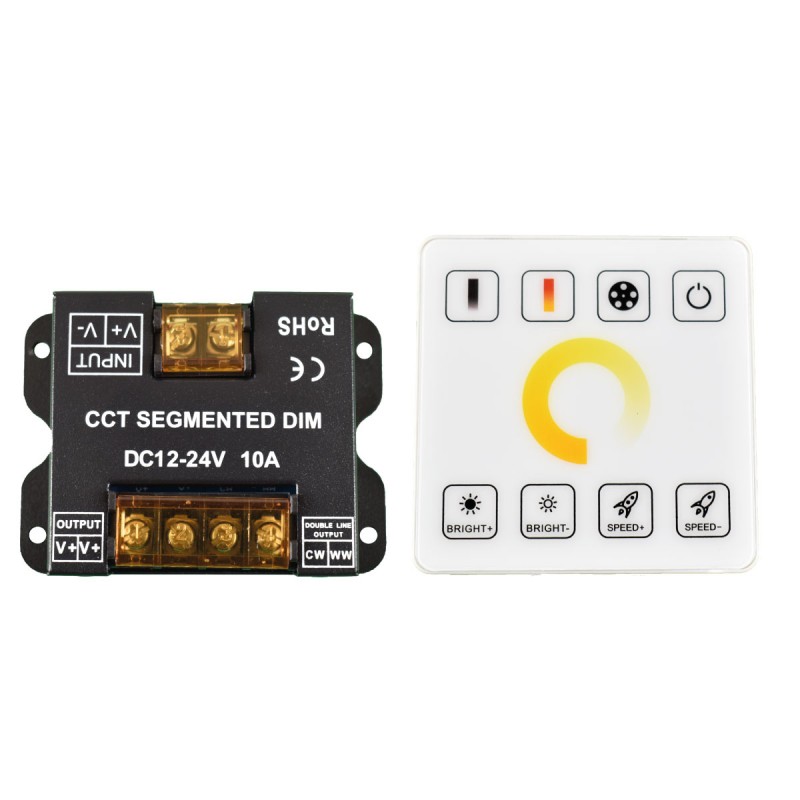

** Includes: a controller, a touch panel, 2 adhesive strips, and a manual **

Ref. RF86-02

16.95 € 16.95 EUR 16.95 € Tax Included

14.01 € Tax Included

Not Available For Sale

This combination does not exist.

Más de 30 días sin ventas
Contact Us

Share

Download product data sheet
Product Review's
0

Certs CE | ROHS
Connectivity RF
Color control CCT

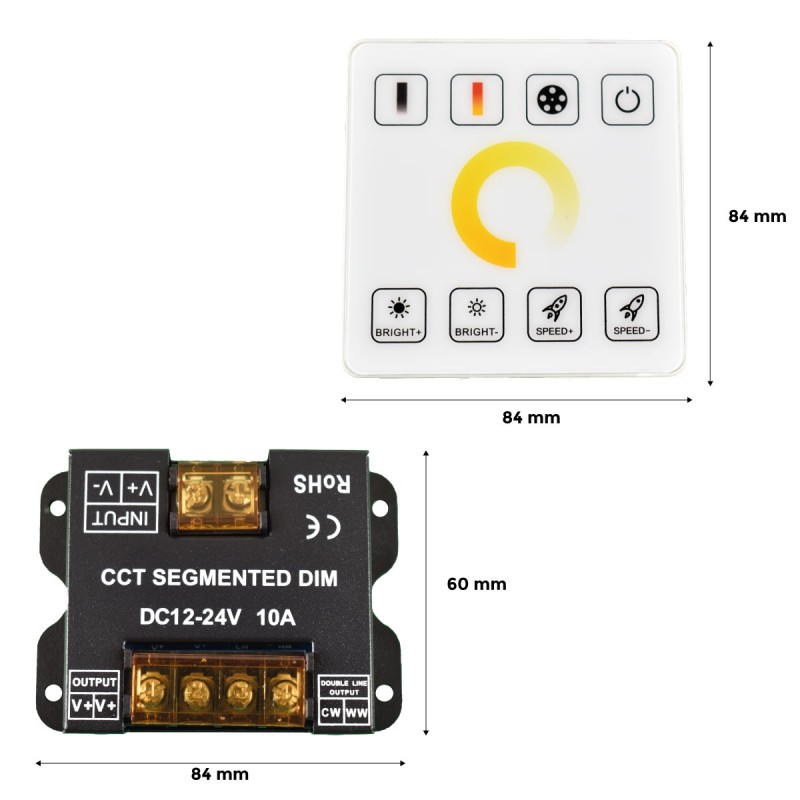

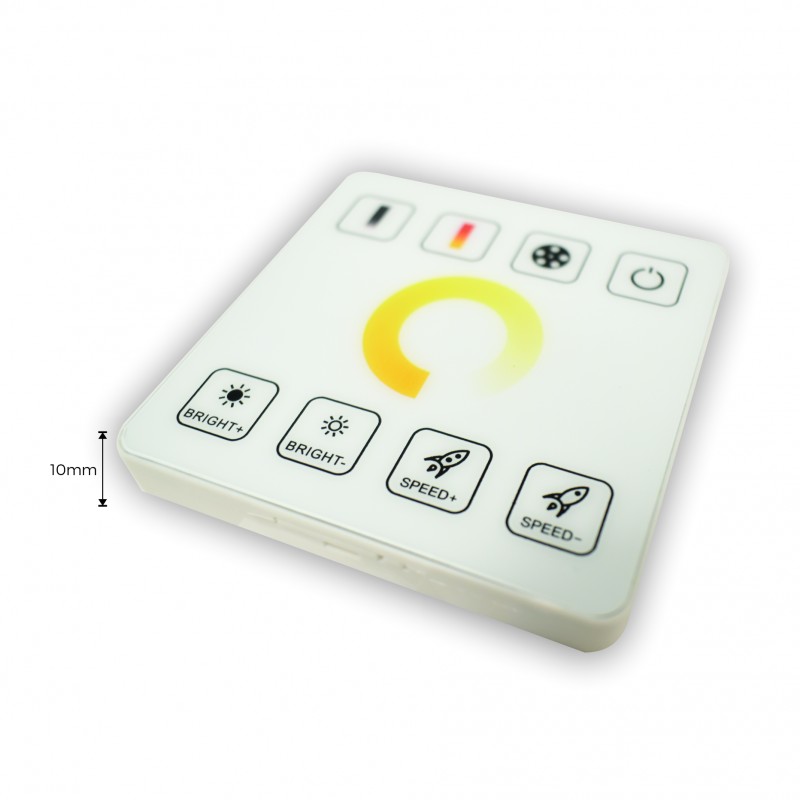

Dimensions (mm) LxWxH controller: 85 x 60 x 20mm - panel: 84 x 84 x 10mm
Guarantee According to legal warranty: 3 years
Maximum intensity (A) 10
IP IP20
Material Aluminum | Plastic
Number of channels 2
Weight (g) 170
Temperature range -20°F to +60°F
Nominal Voltage (V) 5-24V
Outdoor Use No
Product Image

This CCT LED strip controller is compatible with most 5V to 24V CCT LED strips with a maximum current of 10A.

The wall-mounted touch panel features a stable capacitive touchscreen with high-quality LED dimming.

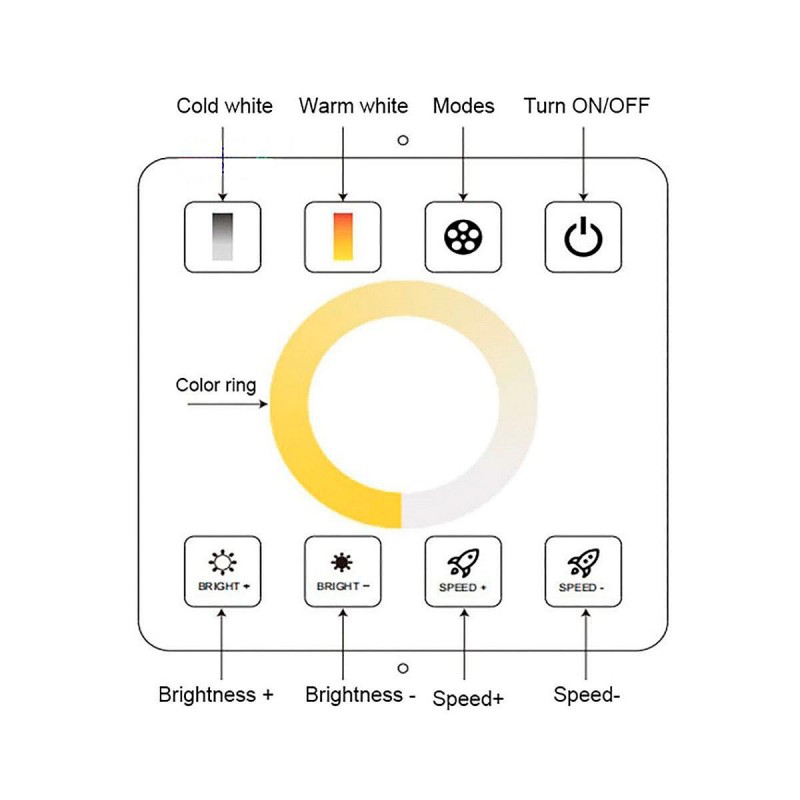

It allows for gradual control of brightness from 0 to 100% (Keys: Brightness+ and Brightness-) and of color temperature with the central gradual circle, where it allows switching from warm white to cool white. The cool white tone can also be selected with the top left key (black bar) and for warm with the next key (orange bar).

It offers the ability to configure dynamic modes and adjust their speed, including fading, strobe, and flash. The settings are saved when you turn off the lights.

When using RF, it operates wirelessly, so there is no need to change any existing electrical circuits. The control distance is 15 meters.

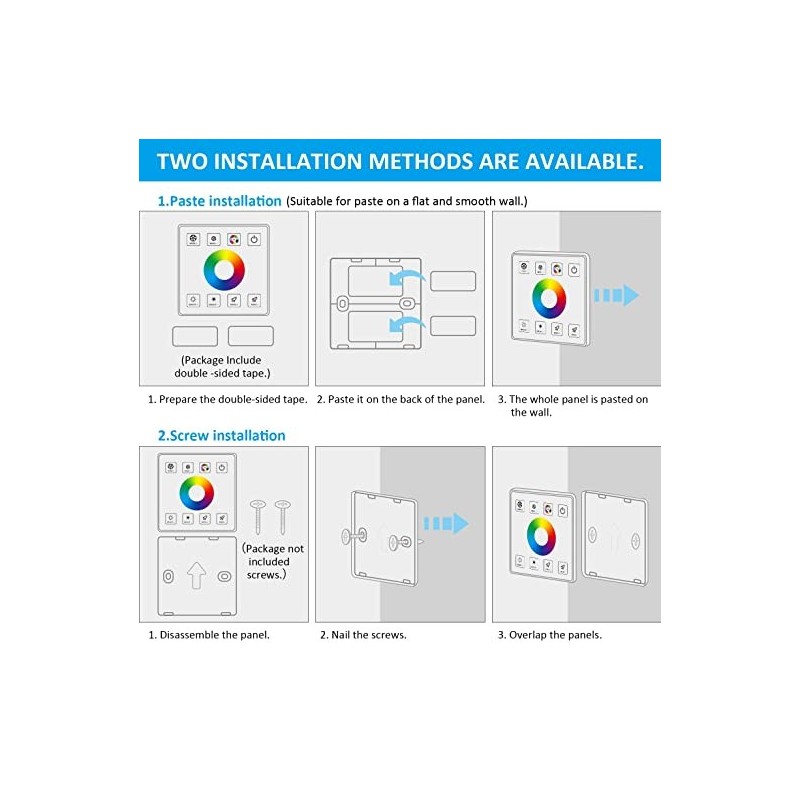

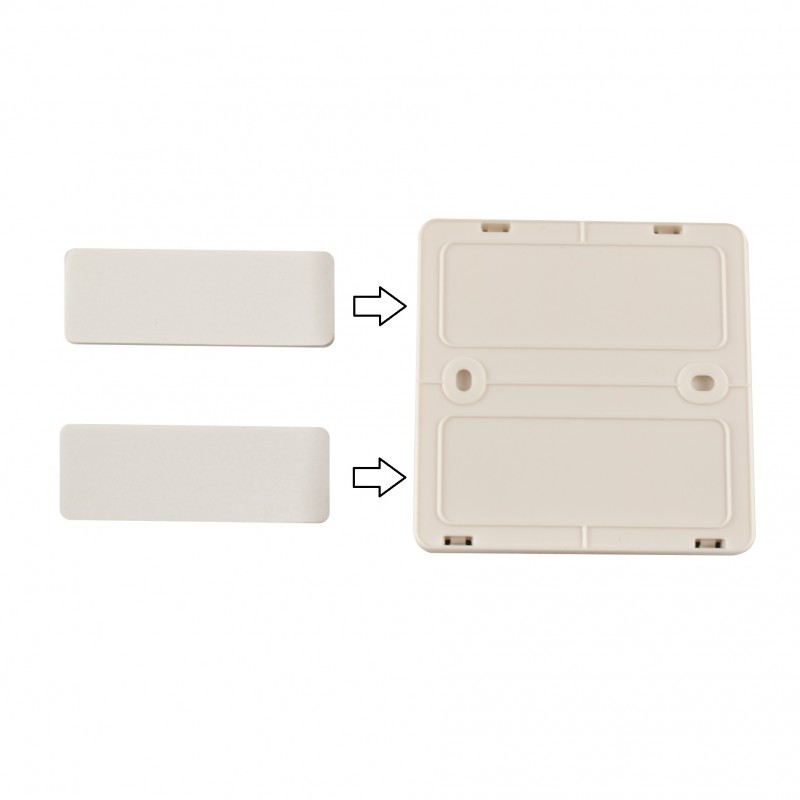

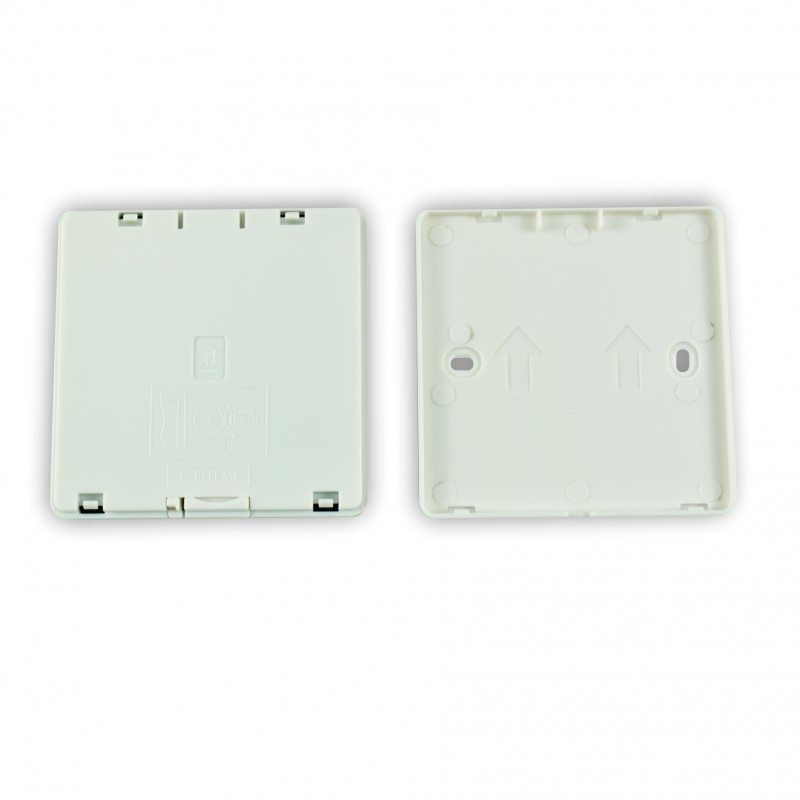

The panel also offers two easy ways to install it on the wall: using the double-sided adhesive tape (included), or with two screws (not included). It operates with a CR2025 3V battery (included).

With its ultra-slim and classic design, this controller integrates into any environment and allows for complete and simple lighting customization.

Note:

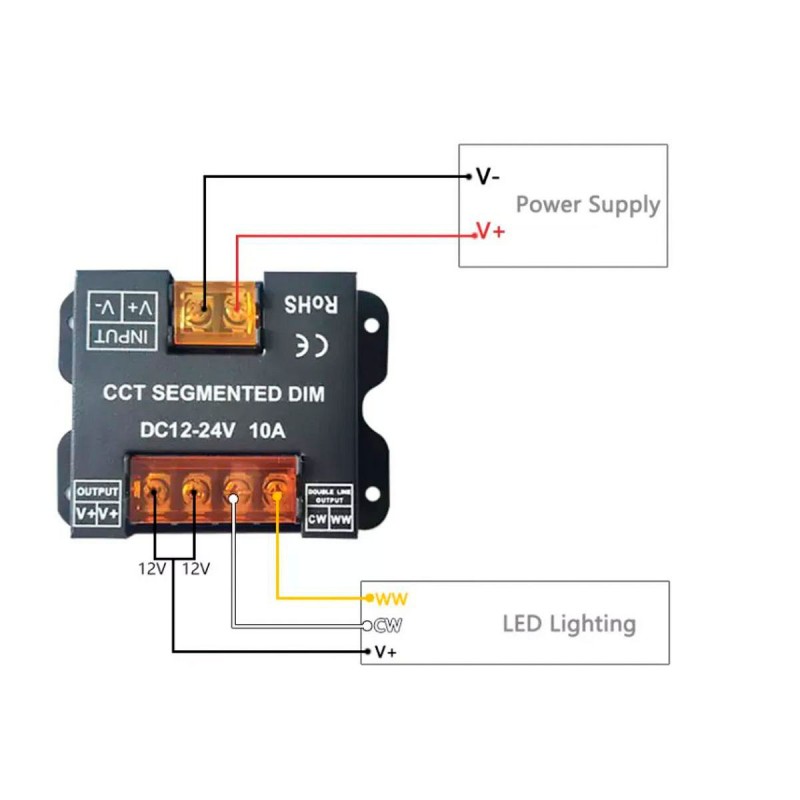

- Pay attention to the DOUBLE LINE OUTPUT (CW and WW), the two wires of the strip can only be connected to these two interfaces marked on the controller.

- BRIGHTNESS: Brightness+ and Brightness- keys (Continuous adjustment)

- SPEED: Speed+ and Speed- buttons (8 levels)

Code to pair the strips:

- Press and hold the Cool White button for 5 seconds after turning on the remote, and the light bar will blink slowly 3 times.

Code to unpair the strips:

-  Hold down the Warm white button for 5 seconds after turning on the remote, and the light bar will flash quickly 3 times.
