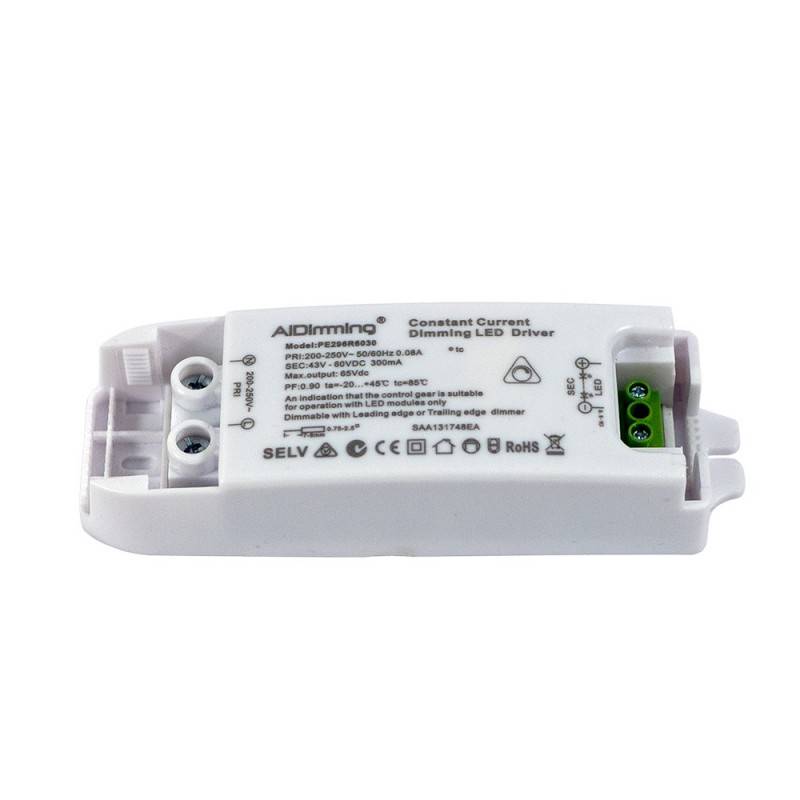

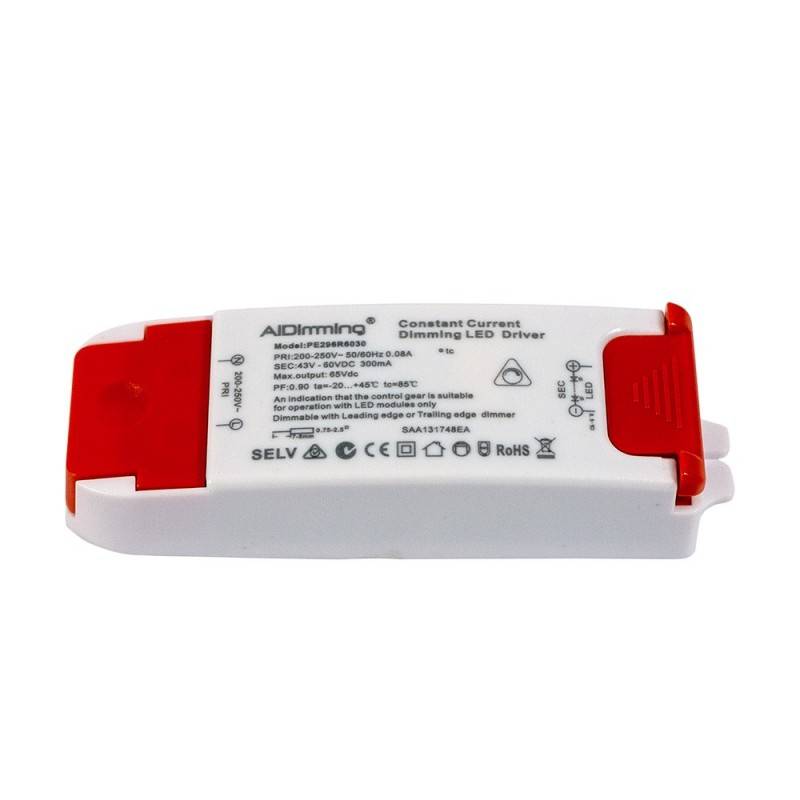

Dimmable TRIAC constant current driver 43-60V 18W 300mA

1 review(s)
https://new.barcelonaled.com/web/image/product.template/711/image_1920?unique=61a46aa

LED Driver TRIAC dimmable 18W / adjustable in intensity. Designed for LED luminaires of 43-60VDC and maximum current of 300mA. Equipped with an EMC filter to prevent interference with radio and WiFi, as well as a flicker-free system, avoiding flickering both in lighting and during dimming.

  • 230V in
  • 43-60VDC out
  • 300mA
  • fp 0.9
  • IP20
Ref. PE296R6030

10.99 € 10.99 EUR 10.99 € Tax Included

9.08 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
1
Comprador verificado
No funcionan con luminarias ultra finas de 18 W

Certs CE | ROHS
Energy efficiency class A+ (2021)
Connectivity Wiring
Dimensions (mm) LxWxH 135x45x34
Power factor (cosφ) 0.9
Frequency (Hz) 50-60
Frequency of Use Intensive
Guarantee According to legal warranty: 3 years
Maximum intensity (A) 0.3A
IP IP20
Material Plastic
Number of channels 1
Power (W) 13-18 max.
Temperature range -20 ~ +45°F
Sensor No
Control system TRIAC
Output Voltage (V) 43-60 Volt Direct Current
Nominal Voltage (V) 200-250V-AC
Outdoor Use No
Service life (h) 25,000

18W constant current TRIAC dimmable driver 43-60VDC 300mA

Dimmable TRIAC LED Driver adjustable in intensity that provides constant current to LED strips, lamps, and LED fixtures of 43-60VDC with a maximum current of 300mA.

With even and smooth regulation, without flickering or jumps, it incorporates EMC filtering to prevent harmonic interference with WiFi signals, radio, and background music. Its design also allows for light emission WITHOUT FLICKER, achieving a much more pleasant lighting experience for the eyes, reducing visual fatigue and promoting study and work.

The maximum power that the driver can handle will depend on the direct relationship between voltage and amperage. If you have any questions, our technical sales department is at your disposal by making click here.

Technical characteristics of the dimmable driver 18W 43-60VDC 300mA

  • AC IN 200-250V
  • SEC: 43-60VDC
  • DC: 300mA
  • Wire-free
  • EMC Filtering
  • Power factor 0.90
  • Regulation: TRIAC
  • Dimensions: 28x44x125mm
  • IP20
  • Certifications: CE, RoHS, TUV, EMC, SAA, LVD
