Dimmable TRIAC constant current driver 43-60V 30W 500mA

https://new.barcelonaled.com/web/image/product.template/3083/image_1920?unique=79e239b

Triac Dimmable Driver 43-60V/DC, constant current, 500ma, 30W. Intelligent PFC regulation, regulation range 2/100%. Constant current Triac dimmable driver specially designed for TRIAC dimming of LED luminaires. TUV certified. NO Flicker, flicker-free. Protections include SCP/OCP/OVP/OTP.

Power 30 Watts.

2-year warranty.

Ref. PE292B6050

14.94 € 14.94 EUR 14.94 € Tax Included

12.35 € Tax Included

Not Available For Sale

This combination does not exist.

Más de 30 días sin ventas
Contact Us

Share

Download product data sheet
Product Review's
0

Certs CE | ROHS
Energy efficiency class A+ (2021)
Connectivity Wiring

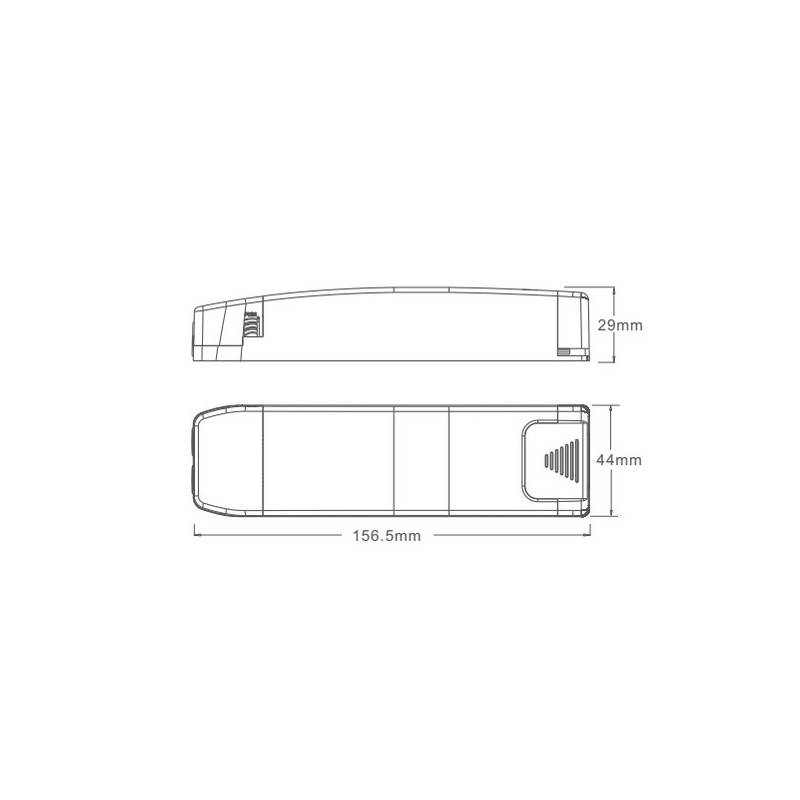

Dimensions (mm) LxWxH 156.5x44x29
Frequency (Hz) 50 - 60
Frequency of Use Intensive
Guarantee According to legal warranty: 3 years
Material Plastic
Power (W) 30
Sensor No
Control system TRIAC
Output Voltage (V) 43-60 Volt Direct Current
Nominal Voltage (V) 180-240V-AC
Outdoor Use No
Service life (h) 25,000
Product Image

Triac dimmable constant current driver 43-60V/DC 30W

The TRIAC dimming is very simple and does not require additional wiring. It is a phase-cut dimming method, which cuts the 230V signal that enters the lamp or bulb driver. The driver receives that voltage and regulates the light. The TRIAC dimming of 43-60V-DC is compatible with most existing phase-cut dimmers on the market.

With TRIAC controllers, you can achieve fantastic results, both in terms of the smoothness of their regulation and their precision.

Features: 43-60DC constant current phase-cut dimmable Triac 43-60 DC 500mA.

Maximum power 30 watts.

Triac Dimmer Driver Characteristics

  1. Phase-cut dimmable driver, dimming range 2-100%.
  2. Active PFC.
  3. Screw terminals for cables up to 1.5 mm.
  4. Protections: short circuit, overload, high voltage.
  5. Compatible with most dimmers on the market.
  6. Usable in domestic and commercial lighting.
  7. Class II protection.
  8. TUV, CE, ROHS, EMC Certification.
  9. 2 years of warranty.
