DALI + 1/0-10V + PUSH dimmable driver - 9-42V DC - Multi current (200-500mA)

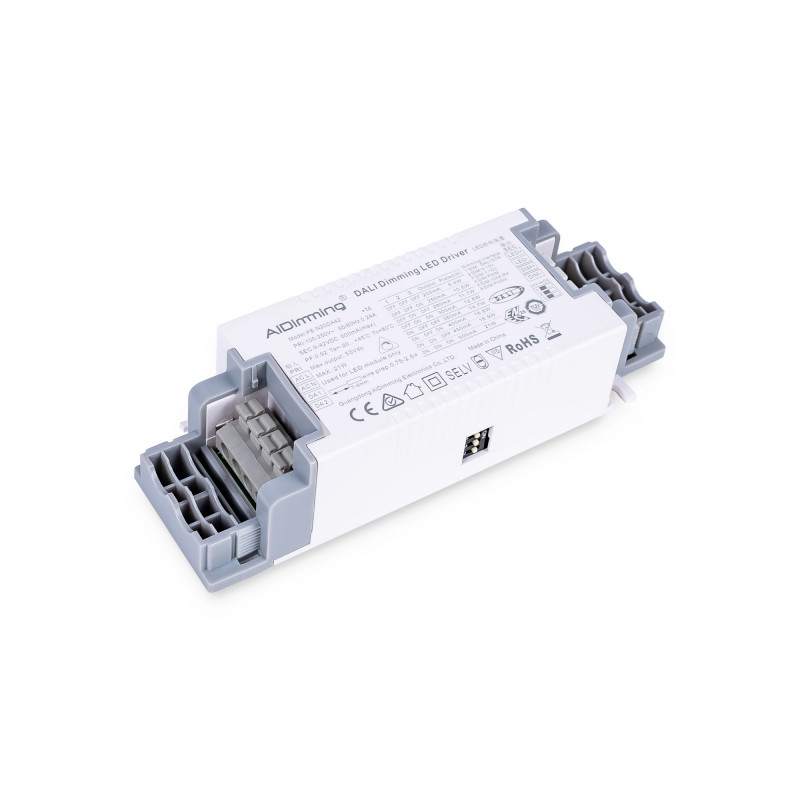

https://new.barcelonaled.com/web/image/product.template/4272/image_1920?unique=79e239b

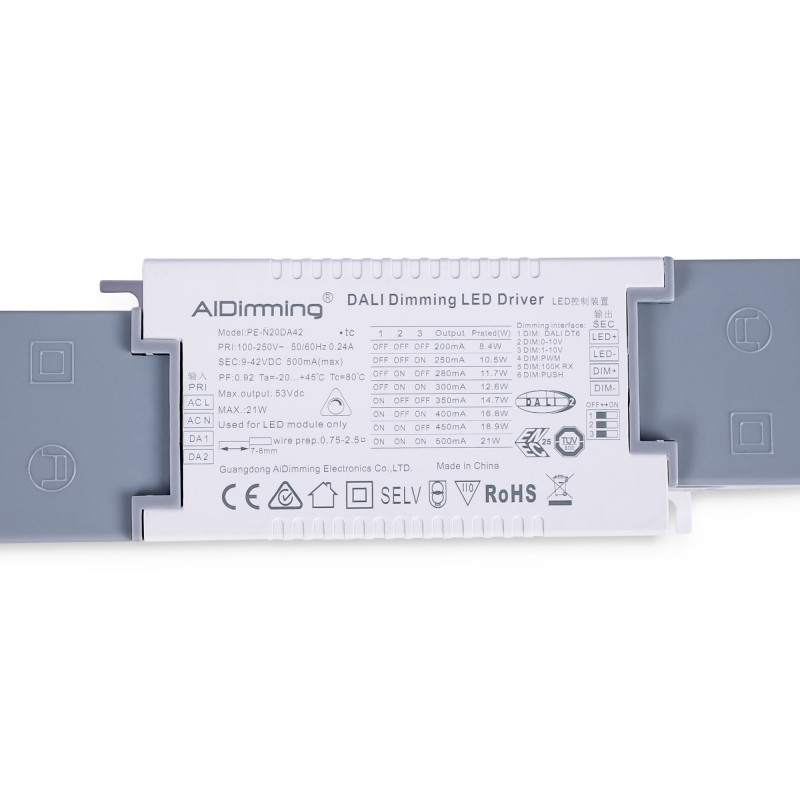

Monocolor constant current driver that allows regulation DALI, 1/0-10V, and PUSH.

It accepts an input voltage of 9-42V and supports a maximum of 500mA.

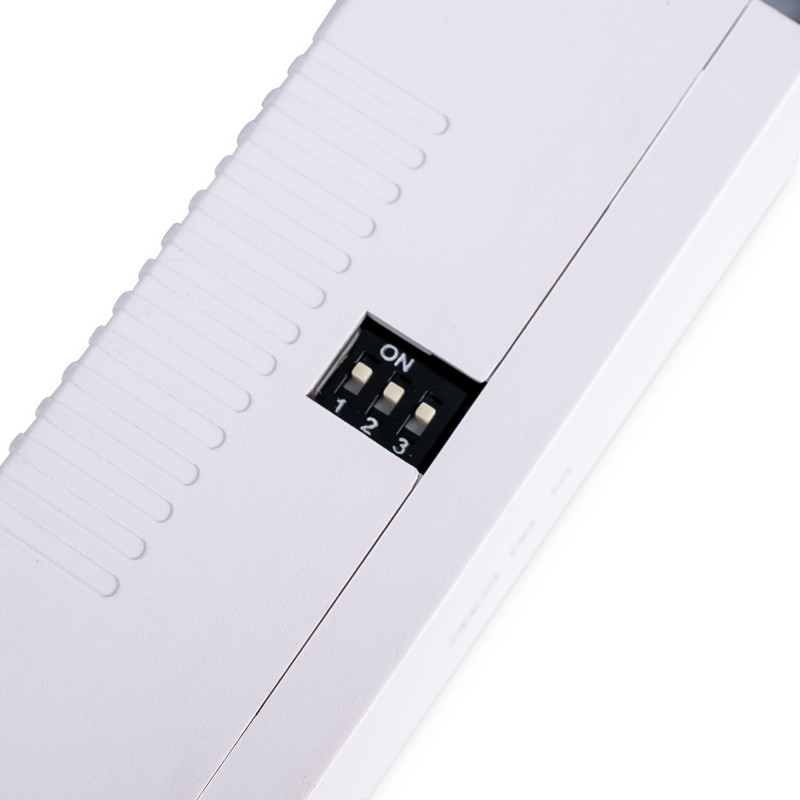

Adjustable multi-current via DIP Switch. 200/250/280/300/350/400/450 and 500 mA

Ref. PE-N20DA42

14.99 € 14.99 EUR 14.99 € Tax Included

18.17 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Certs CE | ROHS

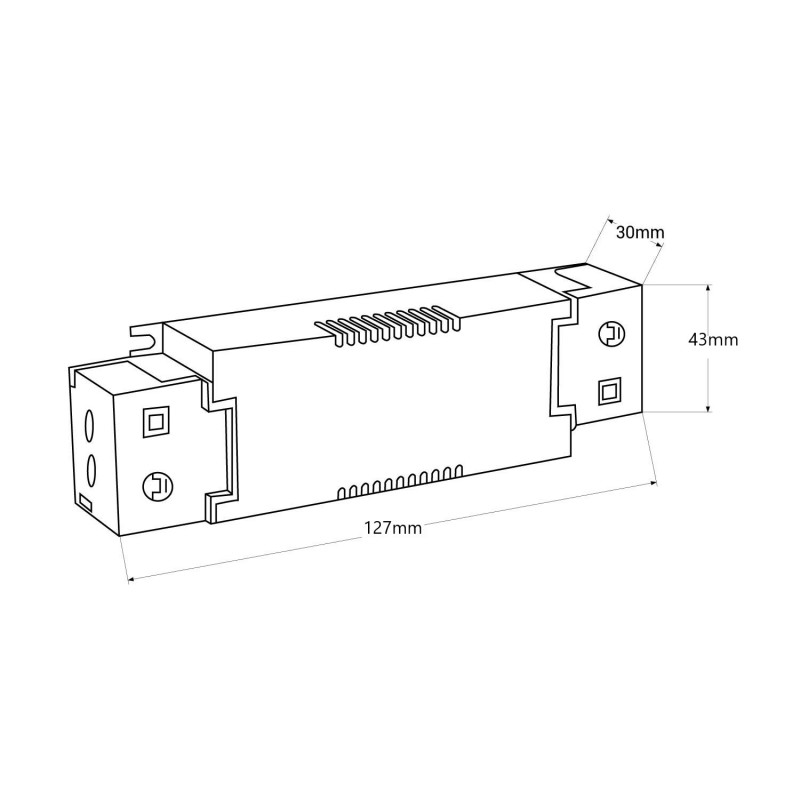

Dimensions (mm) LxWxH 127 x 43 x 30
Frequency (Hz) 50 - 60
Guarantee According to legal warranty: 3 years
IP IP20
Material Plastic
Temperature range -20°F ~ +45°F
Control system DALI | PUSH | 0-10V / 1-10V
Output Voltage (V) 9 - 42
Nominal Voltage (V) 100 - 250
Outdoor Use No
Product Image

This Driver is a multifunction device of great versatility, made with high-quality components and a robust design that ensures a long product lifespan.

Allows regulation: DALI, 1/0-10V, and PUSH.

It features 1 constant current output channel and adjustable current from 200mA to 500mA via DIP switches, making it suitable for a wide variety of LED fixtures.

Ensures a constant and flicker-free light, with an extremely precise dimming of up to 0.01%, along with a high power factor and energy efficiency.

It is highly compatible with universal DALI masters that support DT6 commands, which simplifies its integration into existing systems.

Incorporates protection against short circuits and overloads.
