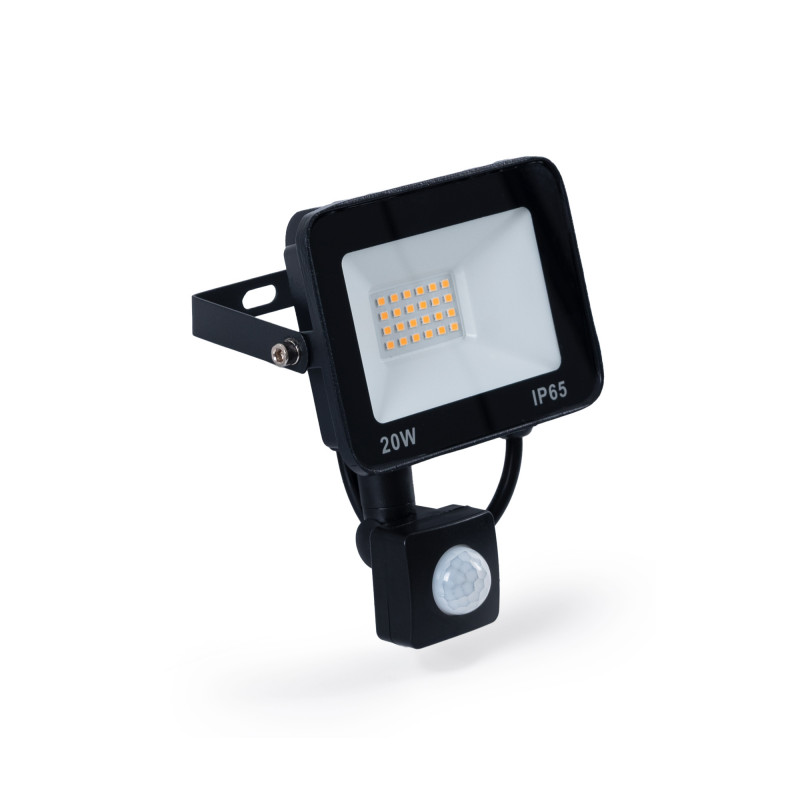

Outdoor LED floodlight with PIR motion sensor - 20W - IP65

https://new.barcelonaled.com/web/image/product.template/4613/image_1920?unique=79e239b

20W Outdoor LED Projector with PIR Sensor. The sensor allows you to set sensitivity, runtime, and outdoor light level.

Durable design with a protection rating of IP65 and high energy efficiency.

Available in warm white (3000K) and cool white (6000K).

Perfect for energy savings and outdoor security.

Ref. B1892-N-BC

9.99 € 9.99 EUR 9.99 € Tax Included

8.26 € Tax Included

Not Available For Sale

  • Light temperature

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Light temperature 3000ºK (use) | 6000K (use)
High 30mm
Width 90mm
Opening angle (º) 120
Certs CE | ROHS
Energy efficiency class F
CRI 80-85
Dimmable No
Efficiency (Lm/w) 80
Power factor (cosφ) 0.9
Projector Range With sensor
Guarantee According to legal warranty: 3 years
IP IP65
Kelvin (K) 3000 | 6000
Long 120mm
Material Aluminum | Polycarbonate
Material diffuser Crystal
Assembly Surface
Orientable Yes
Power (W) 20
Sensor Yes
Nominal Voltage (V) 220 - 240 V AC
Type of LED SMD 2835
Type of sensor PIR
Key Warm white | Cold white
Outdoor Use If
Recommended Use Commerce | Parking | Fascias | Industrial Warehouses
Service life (h) 25,000
Product Image

20W LED outdoor projector with PIR sensor

Optimize the lighting of your outdoor spaces with our 20W LED Projector, which combines a compact design and high durability with energy efficiency.

  • PIR Sensor: Equipped with 3 knobs that allow for adjustment:

✔ Sensitivity: Adjust the sensitivity according to the size of moving objects.
✔ Turn-on time: Set the time the fixture remains on after detecting motion (10±2 sec. to 5±0.5 min.).
✔ Outdoor light level: Regulates the necessary ambient light level to activate the projector (2-2000 Lux). A: when set to the sun position, the sensor works all day; B: when set to the moon position, the sensor activates the projector only at night or when ambient lighting is insufficient.


- Detection distance: <25°: 3-8 m.

  • High performance: With an efficiency of 80 lm/W, it offers illumination available in 2 shades: warm white (3000K) and cool white (6000K). Its CRI>80 ensures excellent color reproduction.

  • Wide Beam Angle: Offers a 120° beam angle, providing broad and uniform lighting coverage.

  • Extreme resistance: Made from aluminum with an IP65 protection rating, ensuring durability and optimal heat dissipation.

  • Versatile installation: Equipped with a 180° adjustable mount, it allows you to direct the light as needed. Recommended installation height: 1.8-2.5 m.

    Perfect for commercial entrances, facades, parking areas, gardens, or transit zones, providing quality lighting and great energy savings.
