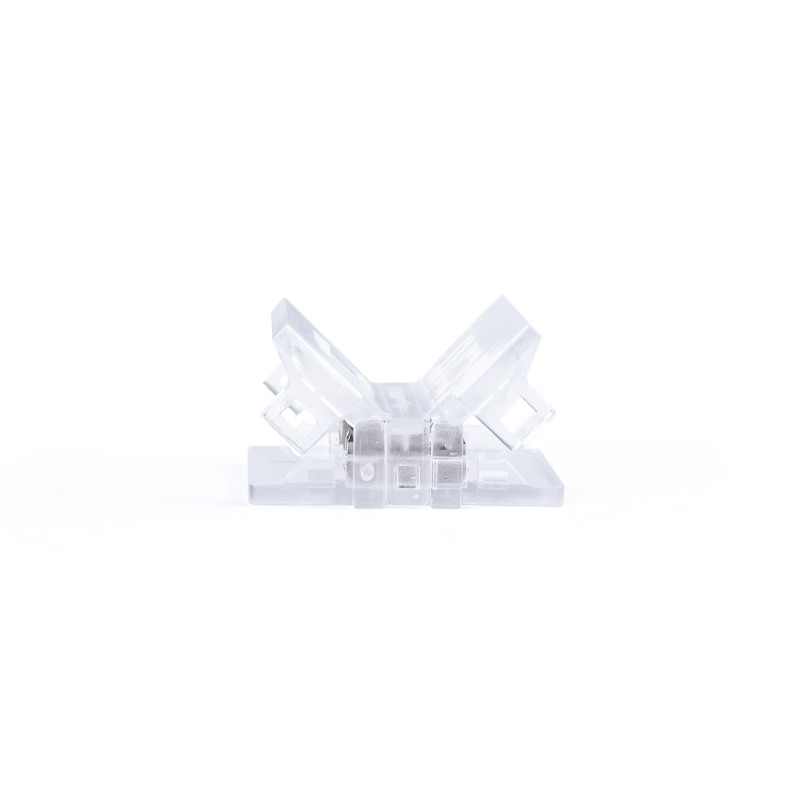

Hippo COB RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V

Hippo quick connector for LED strip to strip connection. Suitable for RGBW COB LED strips with 12mm PCB.

IP20 Protection. Accepts voltages between 3-24V.

Ref. MN20-B12C-5P

This combination does not exist.

Product Review's

Track width (mm)	12
Certs	CE \| ROHS
Dimensions (mm) LxWxH	16.5 x 13.7 x 4.3
Guarantee	According to legal warranty: 3 years
Maximum intensity (A)	3.5
IP	IP20
Nominal Voltage (V)	12-24V DC
Type of LED	COB
Outdoor Use	No

Hippo quick connector for joining two LED strips.

It is suitable for all RGBW COB IP20 LED strips with a width of 12mm and a maximum voltage of 24V.

For installation, insert the strips into the terminals of the HIPPO connector. Then, gently close the covers until you hear a click.

Due to its compact size, it can be used in narrow spaces such as aluminum profiles, slots, and furniture cavities.
