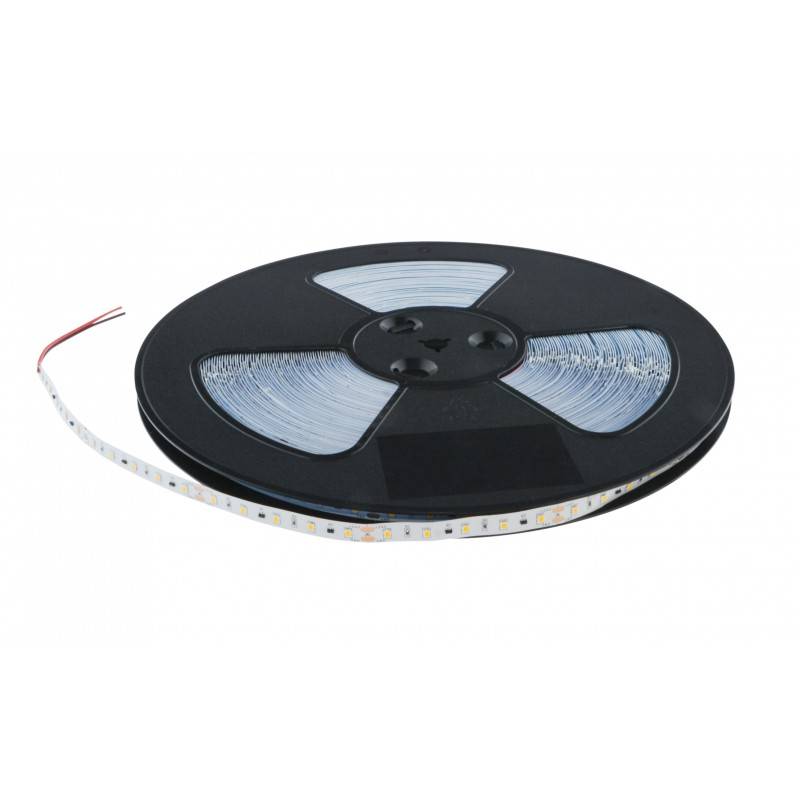

LED Strip 24V-DC - 9W/m - single color - 10mm - IP20 - Roll 50 meters - 60 chips/m - Cutting c/10 cm

https://new.barcelonaled.com/web/image/product.template/1631/image_1920?unique=79e239b

24V DC single-color LED strip for indoor use in a 50-meter roll.

Incorporates high-quality SMD2835 LED chips with a density of 60 chips/meter, which provide a power of 5W/m for neutral and warm white tones and 9W/m for cool white tones.

It has the ability to make cuts every 10 cm, making it very versatile for different lighting projects. Thanks to its high color rendering index, CRI>80, it reproduces colors accurately, similar to natural light.

It is adjustable and is available in warm white (2700K), neutral white (4000K), and cool white (6500K).

It incorporates a chip that prevents voltage drop, allowing for longer installations than other low voltage LED strips.

Ref. B1652-50-270

139.99 € 139.99 EUR 139.99 € Tax Included

123.93 € Tax Included

Not Available For Sale

  • Light temperature

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Light temperature 2700ºK (use) | 4000ºK (use) | 6500K (use)
Adhesive 3M
Track width (mm) 10
Opening angle (º) 120
Certs CE | ROHS
Energy efficiency class A+ (2021)
CRI 80-85
Dimmable Yes
Cut distance (mm) 100
Frequency (Hz) 50 - 60
Guarantee According to legal warranty: 3 years
Kelvin (K) 4000 | 6500 | 2700
# Chips per meter 60
Nominal Voltage (V) 24V DC
Type of LED SMD 2835
Key Warm white | Cold white | Neutral white
Outdoor Use No
Service life (h) 25,000
Product Image

24 V DC LED Strip - IP20 for indoor use - Width 10 mm - 50-meter roll

This LED strip is powered by a 24V DC source. It incorporates a small chip that compensates for voltage drop, allowing for custom installations in setups longer than 10 linear meters, where the standard 12V or 24V strips are insufficient.

If using the full roll (50 m), it is recommended to power the LED strip from both ends (start and finish). Up to 15 m, it is sufficient to power from just one end.

It is designed according to the highest quality standards, incorporating the latest generation LED technology that allows it to emit very powerful and uniform light.

Due to its IP20 protection rating, it is suitable for indoor use.

It offers three variants of color temperature, according to the needs of the space and the atmosphere we wish to create: warm white (2700 K), neutral white (4000 K), and cool white (6500 K)

High power and low consumption

It has a power of 5W/m for neutral and warm white tones, and 9W/m for cold white tones. It also features a density of 60 chips per meter.

It has a beam angle of 120° and a high color rendering index, CRI >80, which allows it to reproduce colors very similarly to natural light.

Easy installation and handling

The LED strip is available in a 50-meter roll. Cuts can be made every 100mm, according to the indicated marks. The width of the strip is 10mm and it features a 3M self-adhesive backing for attaching to the desired surface.

Recommended use for LED strips

Indoor lighting in general

Lighting for display cases, shelves, and shop windows

Decorative lighting indoors

Architectural lighting indoors

Any installation requiring long runs at low voltage.

Illumination of large luminous signs.

It should be noted that certain technical characteristics such as power or efficiency may vary according to the color/shade of the product. For greater accuracy, please refer to the test reports attached in the "Downloads" section or consult with our sales advisors.
