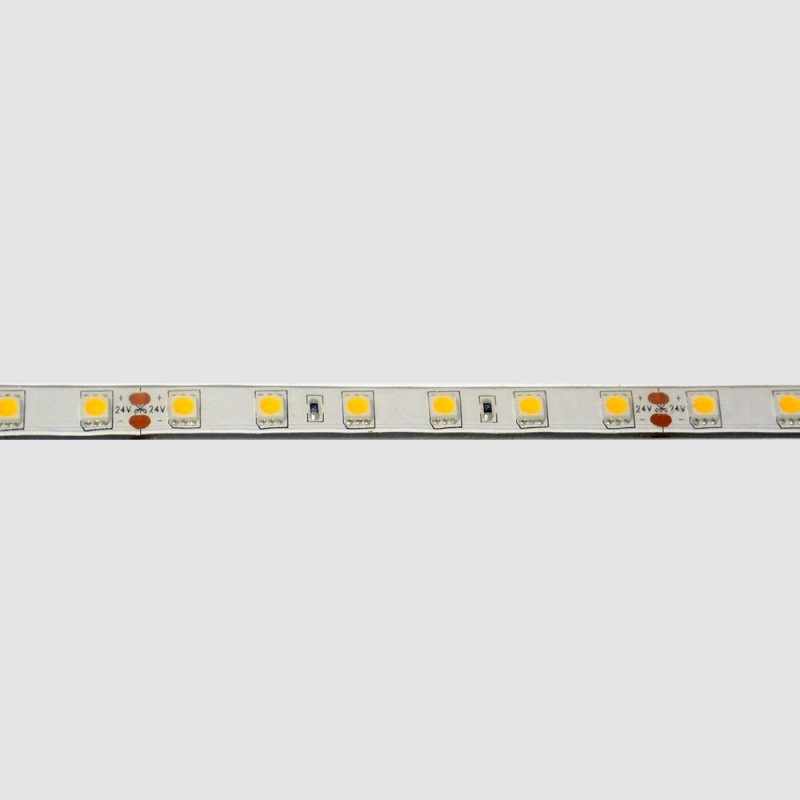

LED Strip 24V-DC 10W/m SMD5050 IP68 20 meters Roll

https://new.barcelonaled.com/web/image/product.template/631/image_1920?unique=79e239b

20-meter roll of silicone LED strip (IP68) for outdoor use. Nominal power 10W/meter, allows cutting to size every 10cm.

Depending on the mounting system, this innovative high-quality strip allows for installation of runs up to 40 linear meters with a single power supply connection in the center, powering towards the sides. Consult with our sales department, and we will propose different options for easily mounting this versatile 24V LED strip.

  • 24V-DC
  • 10W/meter
  • SMD5050
  • 20 meters
  • IP68
Ref. B1502-BC

144.89 € 144.89 EUR 144.89 € Tax Included

115.66 € Tax Included

Not Available For Sale

  • Light temperature

This combination does not exist.

Más de 90 días sin ventas
Contact Us

Share

Download product data sheet
Product Review's
0

Light temperature 3000ºK (use) | 6000K (use) | RGB (use)
Adhesive No
Track width (mm) 12
Opening angle (º) 120
Certs CE | ROHS
Energy efficiency class A+ (2021)
Dimensions (mm) LxWxH 20000 times 12
Dimmable Yes
Cut distance (mm) 100
Frequency (Hz) 50 - 60
Guarantee According to legal warranty: 3 years
IP IP68
Kelvin (K) 3000
# Chips per meter 60
Power (W) 10
Power/m (W/m) 10
Temperature range -20°F ~ +40°F
Nominal Voltage (V) 24V DC
Type of LED SMD 5050
Key Cold white | RGB
Outdoor Use If
Recommended Use Garden
Service life (h) 25,000
Product Image

20-METER ROLL OF LED STRIPS AT 24V-DC 10W/M PLASTIC COATED IP68

Innovative LED strip made of silicone, IP68 at 24V-DC, built with SMD5050 chip, will allow you to make custom installations in longitudinal runs where the standard 12V or 24V strip is insufficient, especially in setups beyond 10 linear meters.

Its construction, with a 12mm PCB and a 14mm silicone coating, makes this LED strip the perfect solution for high-quality and durable outdoor installations. The included waterproof connectors will allow you to make the necessary splices quickly and easily. Its high-quality silicone coating does not crack or yellow, ensuring its longevity over time.

You will be able to illuminate stretches of up to 40 meters, with a single power supply in the center, according to the following scheme:

With an IP68 protection rating. One of the highest quality LED strips on the market. Robust, with no annoying flicker and uniform lighting across all the meters that allow for its installation. The SMD 5050 chip provides high intensity and durability. It can be cut at the cut marks indicated on the LED strips. Ultra-bright, with low energy consumption and excellent heat dissipation.

These LED strips are waterproof, allowing for installation both outdoors and indoors. The installation of these LED strips is very simple and stands out for being able to provide uniform LED lighting, using only one power supply for 40 meters. With a beam angle of 120 degrees.

Technical specifications:

  • Chip LED SMD5050 - 60 chips per meter
  • Warm white 2700K / Cool white 6000K / RGB
  • Rated power: 10W/meter
  • Voltage: 24V
  • Roll length: 20 meters
  • IP68
  • PCB Width: 12mm
  • Total width: 14mm including silicone coating
  • Cut-off distance: 100mm
  • Frequency: 50/60 Hz
  • Waterproof connectors included
  • Does not include adhesive backing, mounting with staples / profile.

Applications:

  • Architectural lighting
  • Building outlines and canopies
  • Decorative lighting for areas with high humidity
  • Pool, lake, and pond outlines
  • Illumination of large luminous signs
  • Any setup that requires long runs at low voltage

Connection cables RGB Model:

  • Black Wire > + Positive
  • Color Markless Cable > Green Channel
  • Red Wire / (Brown) > Red Channel
  • Blue Cable > Blue Channel
