Permanent emergency light with "Toilet" pictogram

https://new.barcelonaled.com/web/image/product.template/4101/image_1920?unique=79e239b

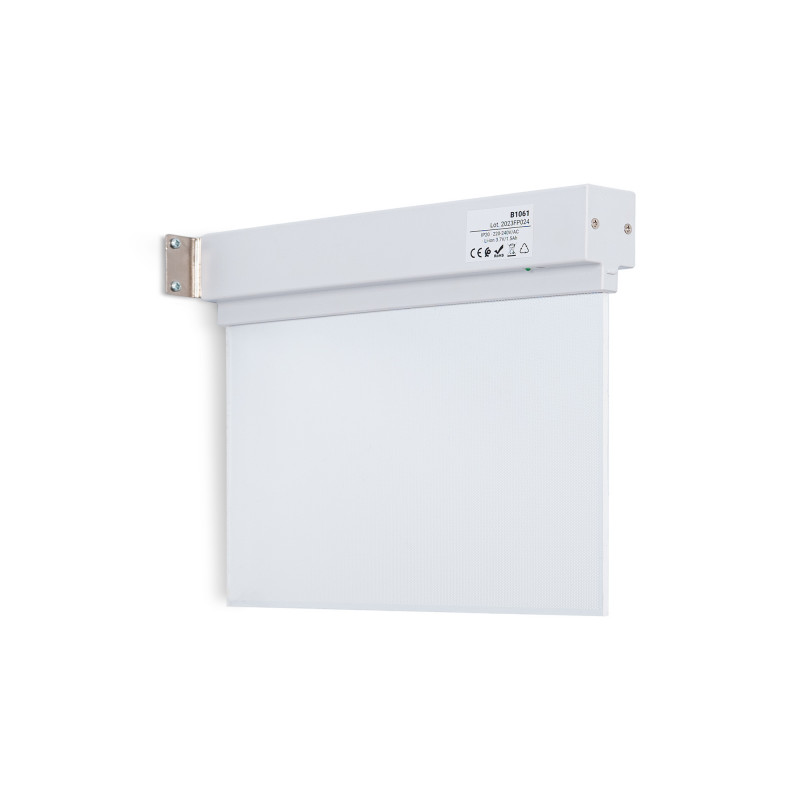

Permanent surface emergency light with acetate pictogram indicating the location of the restrooms.

This light fixture remains permanently on, even in the event of a power outage, providing up to 3 hours of autonomy. With a functioning LED indicator.

Its installation on the ceiling or wall is simple and includes all the necessary elements for it.

Ref. K-B1061-BAÑOS

29.99 € 29.99 EUR 29.99 € Tax Included

28.91 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Certs CE | ROHS
Frequency (Hz) 50 - 60
Guarantee According to legal warranty: 3 years
IP IP20
Assembly Surface
Nominal Voltage (V) 220 - 240 V AC
Battery type 3.7V
Type of LED SMD 2835
Key Cold white
Outdoor Use No
Recommended Use Hotels | Industry
Product Image

Reliable lighting and effective signaling

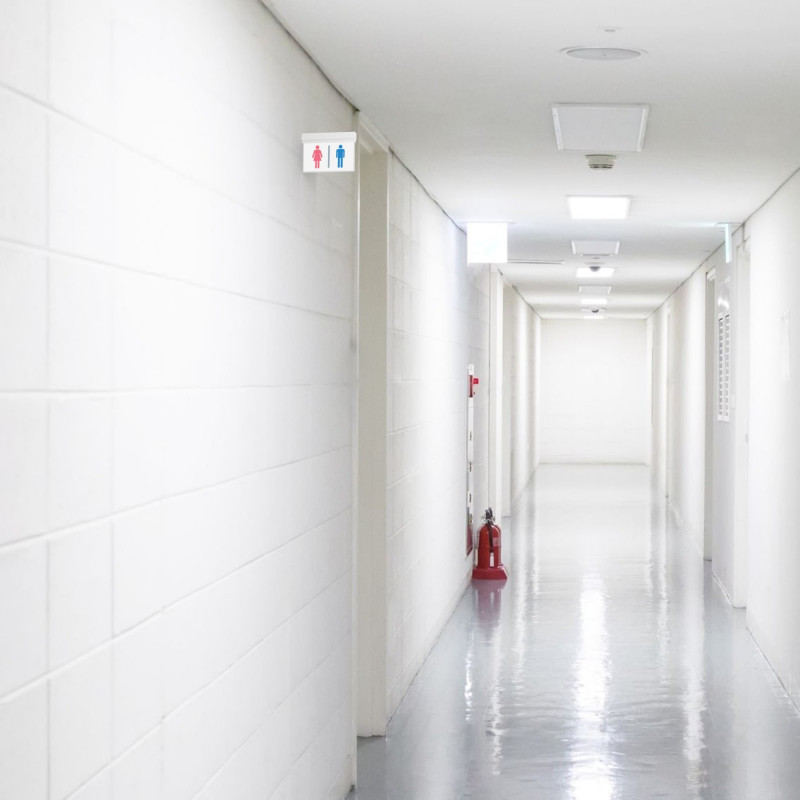

This emergency light is always kept on, ensuring safe and constant lighting in low natural light situations or during a power outage.

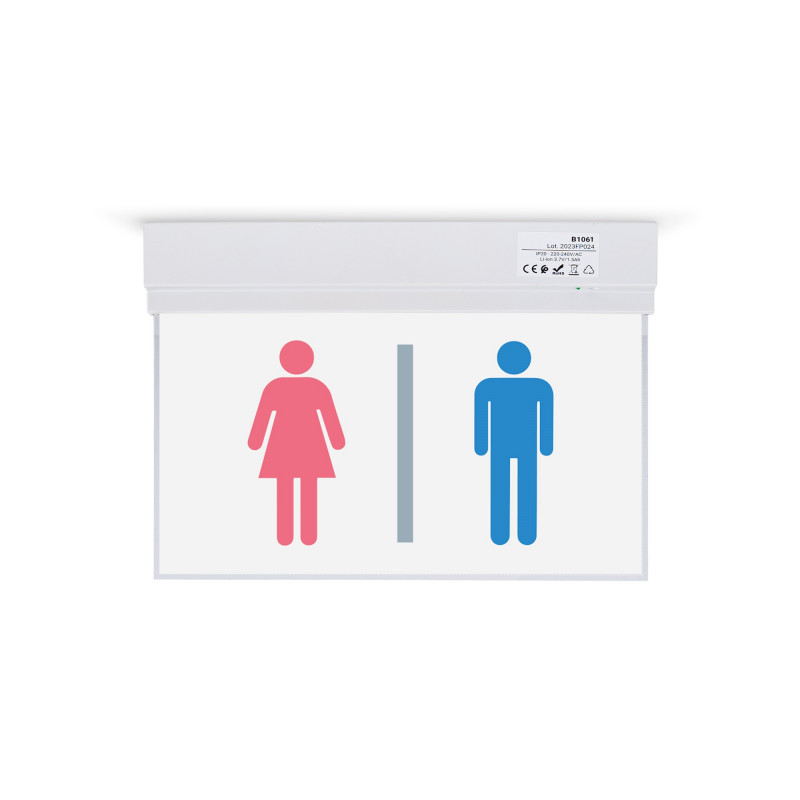

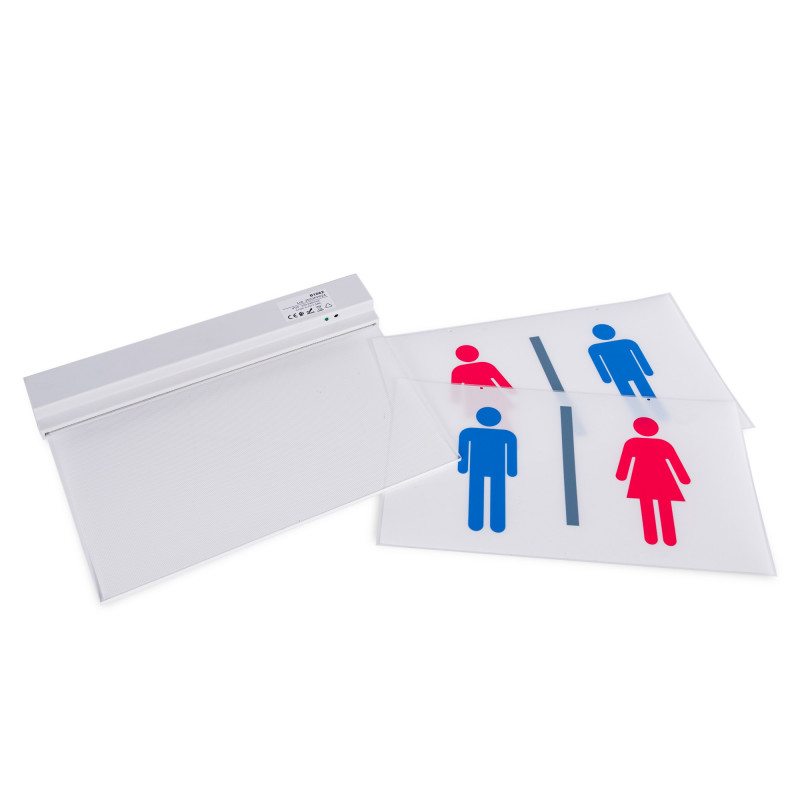

Incorporates two acetate signs that are placed very easily on the luminaire and provide clear signage for the location of restrooms.

The luminaire features SMD2835 LED chips that ensure clear and intense lighting in a cool white tone (6500K)..

In case of a power outage, the light has a 3-hour backup.

Installation

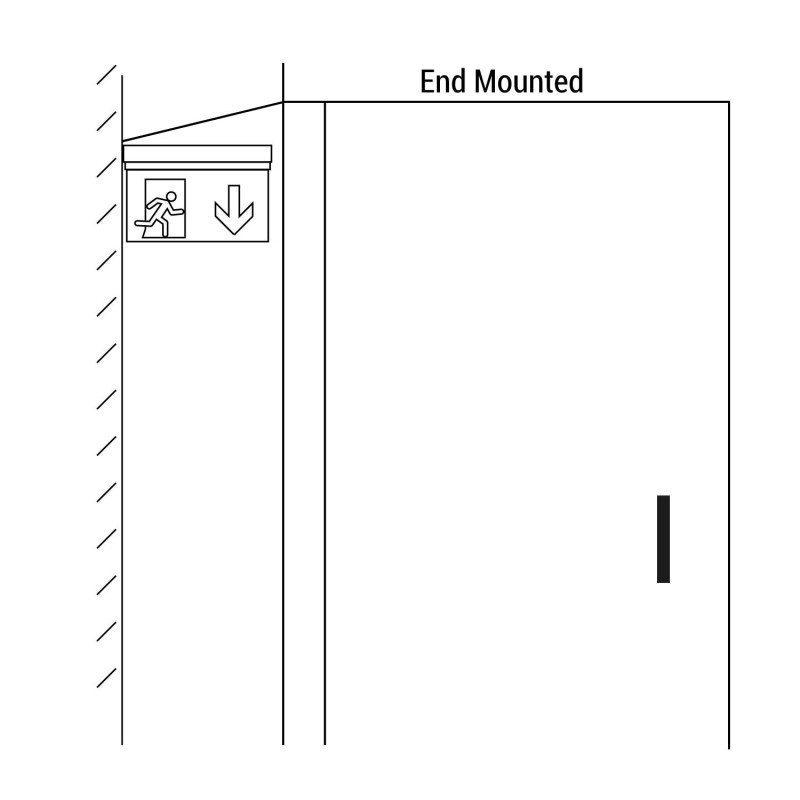

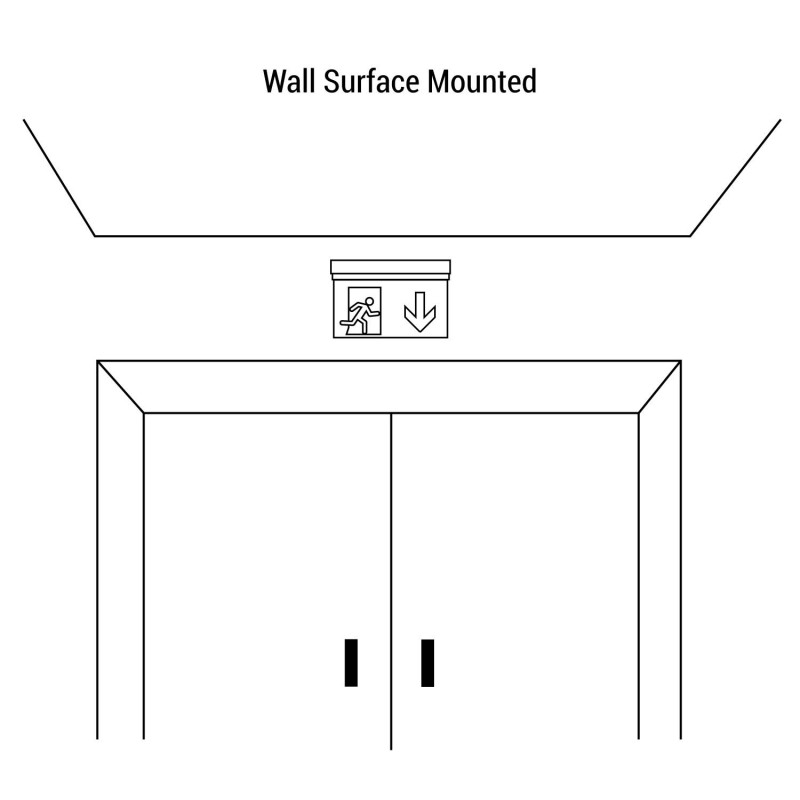

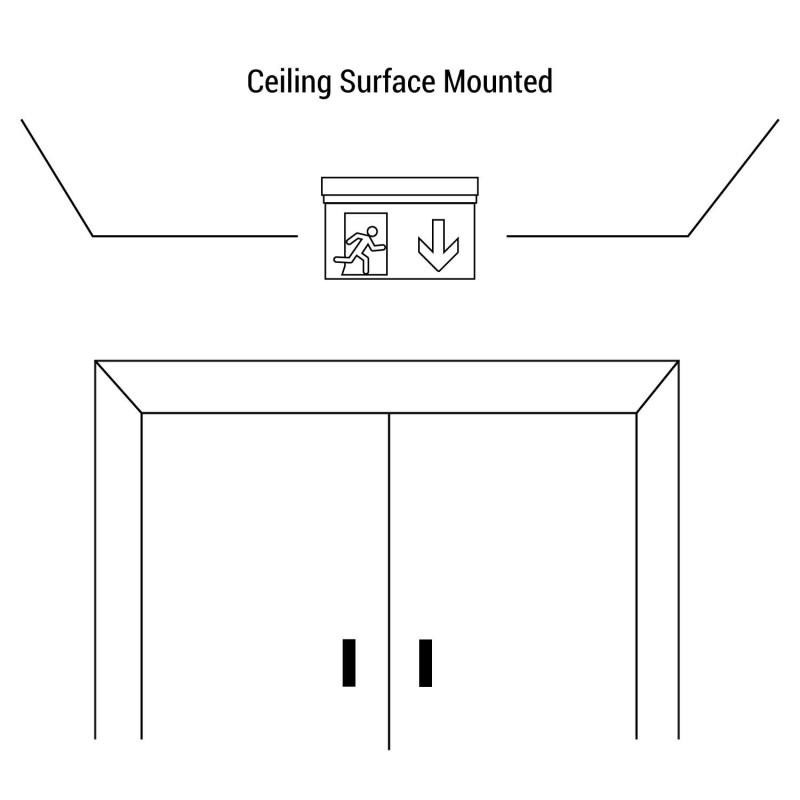

This emergency light is intended for surface installation, both on ceilings and walls. It only requires connecting the electrical wiring, making installation simple and quick, and securing it with screws to the installation surface.

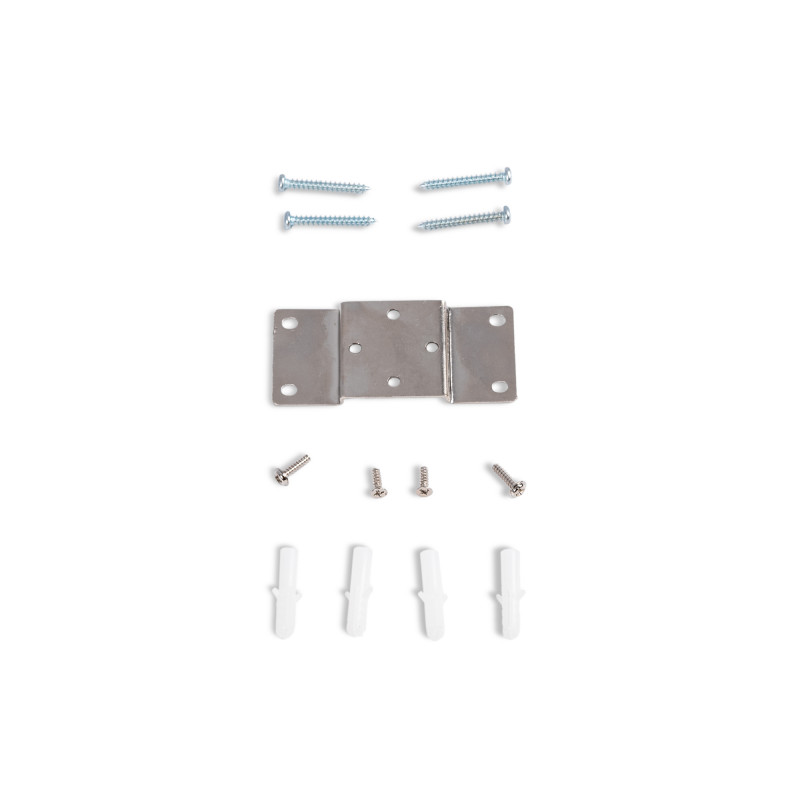

Includes all the necessary elements for assembly.

Precautions during installation:

1) Disconnect the power during installation

2) This product should not be installed in outdoor locations, humid areas, with corrosive gases, etc.

3) This product should be used in a dedicated power circuit. It must not share a circuit with lighting or other electrical equipment (with a switch) to ensure that the battery can recharge normally.

4) To ensure that the product functions normally, it should be checked periodically.

5) The product should be charged for approximately 24 hours before the first use.

6) If the product is stored or not used for a long time, it should be charged and discharged once every three months to protect battery performance.

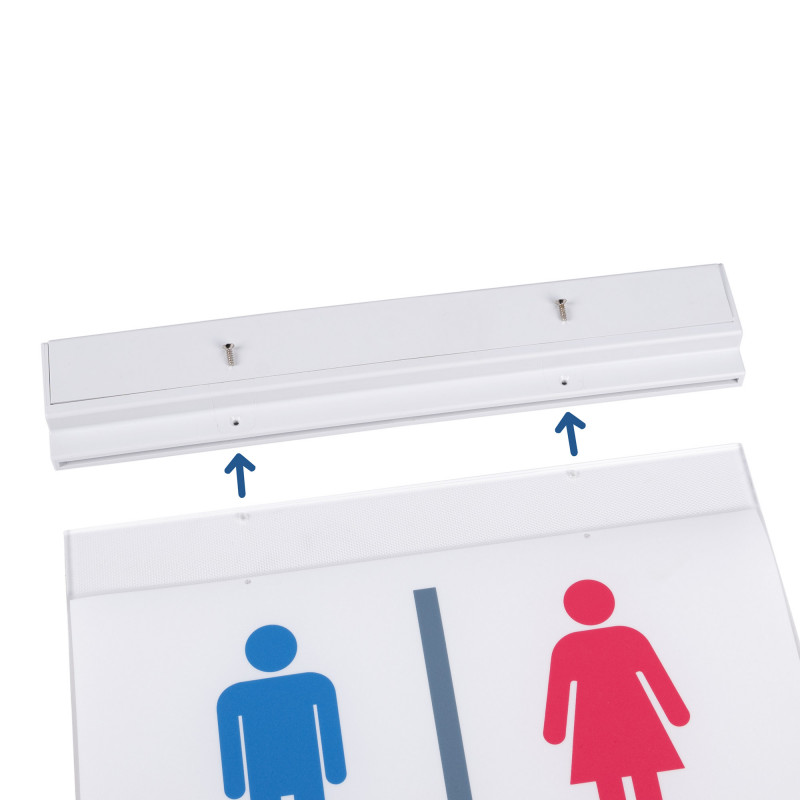

Acrylic sign assembly:

1) Unscrew the transparent panel that is attached to the base of the fixture.

2) Next, attach the poster to the panel using double-sided tape or another adhesive, ensuring that the holes in the poster align with those in the panel.

3) Finally, reassemble the panel onto the fixture and secure it with the screws.

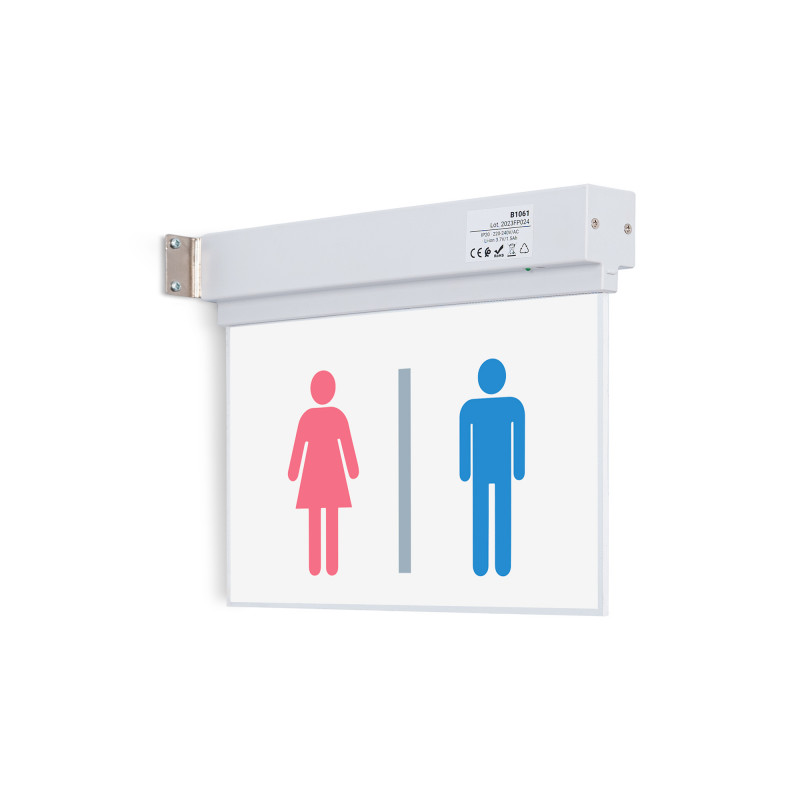

Two identical signs are provided, to place one on each side of the transparent panel, ensuring maximum visibility.

Applications

  • Shops, businesses, and offices.
  • Schools and universities.
  • Health facilities.
  • Entertainment centers.
  • Industrial installations.
  • Public places.
  • Sports facilities.
