LED module for signage SMD2835 1W 12V 170º IP65

https://new.barcelonaled.com/web/image/product.template/2686/image_1920?unique=79e239b

LED Modules for Signage and Backlit Illuminated Signs. Built with a 1W SMD2835 LED chip per module and an open optics of 170º, mounted on a waterproof housing with IP65 rating, suitable for outdoor use. Includes high-resistance 3M adhesive tape on the back. Sold per unit of tablet.

  • 1W
  • 12VDC
  • SMD2835
  • 170 degrees
  • 6500K
  • IP65
  • Adjustable
Ref. BM1424BF

0.69 € 0.69 EUR 0.69 € Tax Included

0.57 € Tax Included

Not Available For Sale

This combination does not exist.

Más de 90 días sin ventas
Contact Us

Share

Download product data sheet
Product Review's
0

Adhesive 3M
Opening angle (º) 170
Certs CE | ROHS
Energy efficiency class A+ (2021)
CRI 80-85
Dimensions (mm) LxWxH 18x33x8
Dimmable Yes
Frequency of Use Intensive
Guarantee According to legal warranty: 3 years
IP IP65
Kelvin (K) 6500
Material Plastic
Power (W) 1
Temperature range -20°F ~ +40°F
Nominal Voltage (V) 12V DC
Type of LED SMD 2835
Key Cold white
Outdoor Use If
Recommended Use Garden
Service life (h) 25,000

LED capsules for signage 1W IP65

LED modules or signage pucks are the solution for illuminating backlit surfaces such as signs or luminous displays with opal or semi-transparent covers. They are especially useful on curved or irregular surfaces where LED strips or fluorescent tubes are not the most suitable solution.

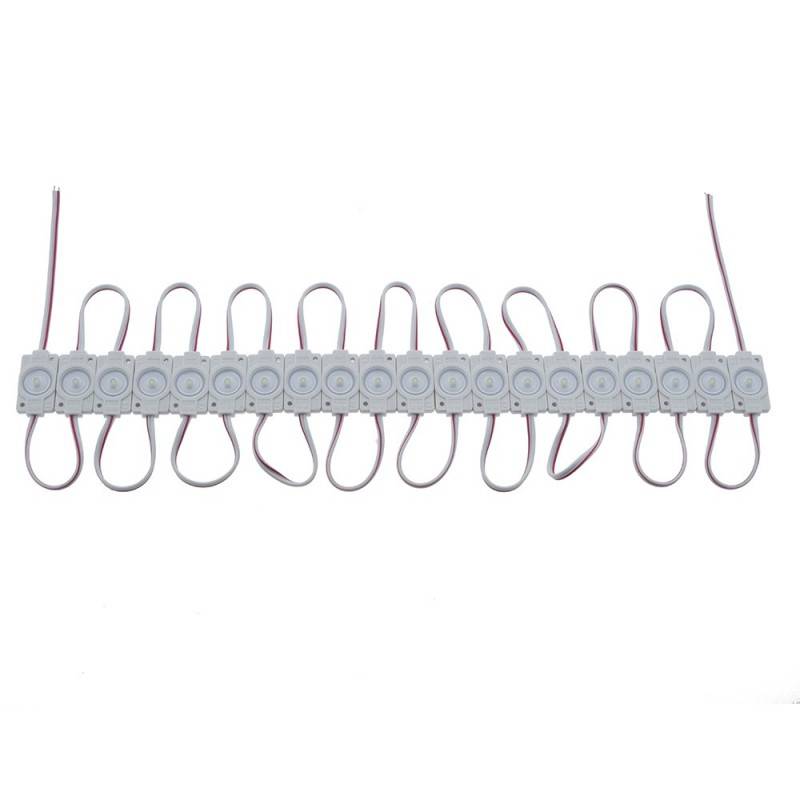

Each LED module consists of 1 high-brightness SMD2835 chip mounted on a waterproof plastic substrate with a transparent lens that has a 170º beam angle. The modules are interconnected by a 9cm long cable, allowing the entire assembly to reach up to 2680mm.

LED module strips with a 3M adhesive backing, very easy to separate with a cutter or scissors. Afterwards, remove the protective plastic from the 3M and stick them in the chosen locations, in a line or forming curves.

High performance with easy installation

Despite its small size, the LED module offers a total of 1W of power each. The illumination is equivalent to 2 fluorescent tubes of 120cm. The connection is made to a 12V power supply (not included).

  • Dimensions of the chips: 18x33mm
  • Thickness of the discs: 8mm
  • Length of cable between pads: 90mm
  • Available in cool white 6500K
  • Dimmables

Applications of LED bulbs

  • The most common application is signage, such as illuminated signs, giant letters lit from within, logos, light boxes for advertising...
  • Illumination of objects inside, such as modding in computers or in the interiors of furniture or boxes
  • Lighting for fish tanks and aquariums.
  • Outdoor decoration
  • Backlighting in general.
