LED module for signage SMD3535 3W 12V IP65 15º.

Special LED modules for signage and display.

With LED modules, you can highlight your signs and displays, attracting the attention of the public and providing visibility at night or in dark areas for your logo, company name, or advertising, while also emphasizing any advertisements or branding you have inside your store.

It is a product highly valued for its high luminous efficiency and low consumption, as well as being usable in multiple applications since its use is much more extensive, for example, for decorating all kinds of objects.

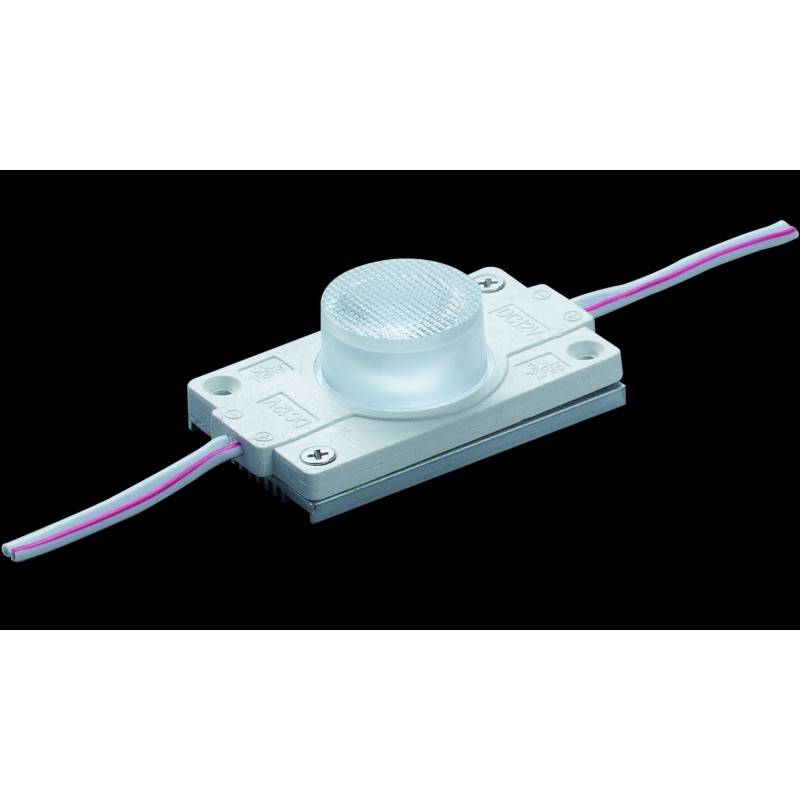

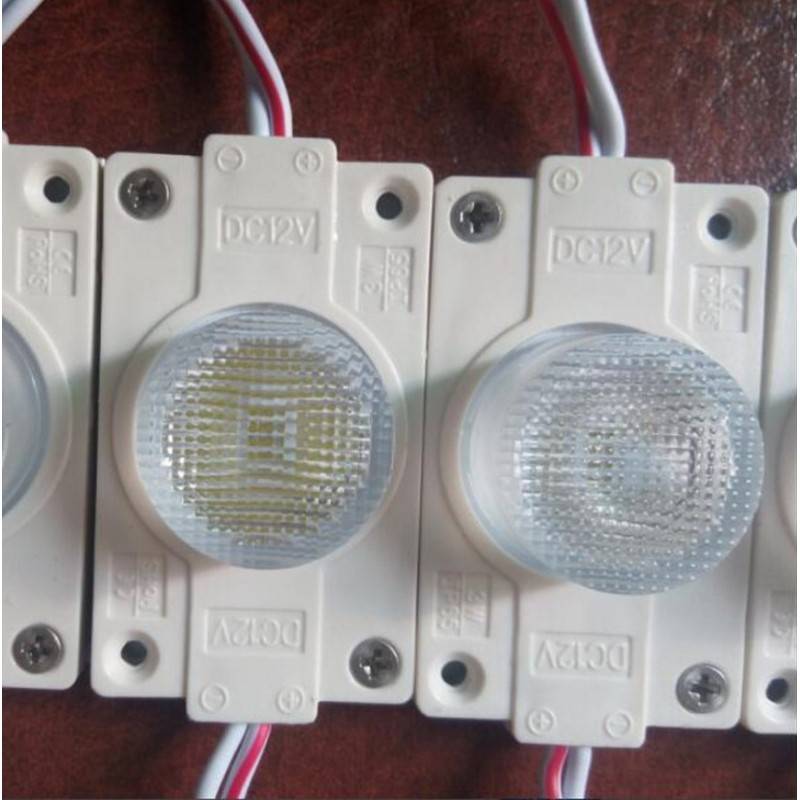

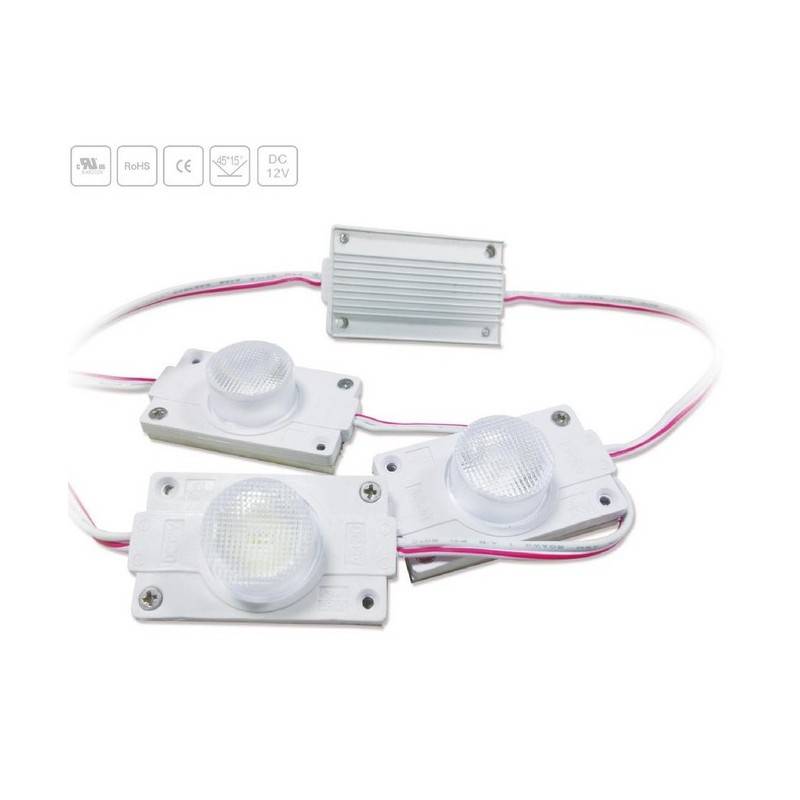

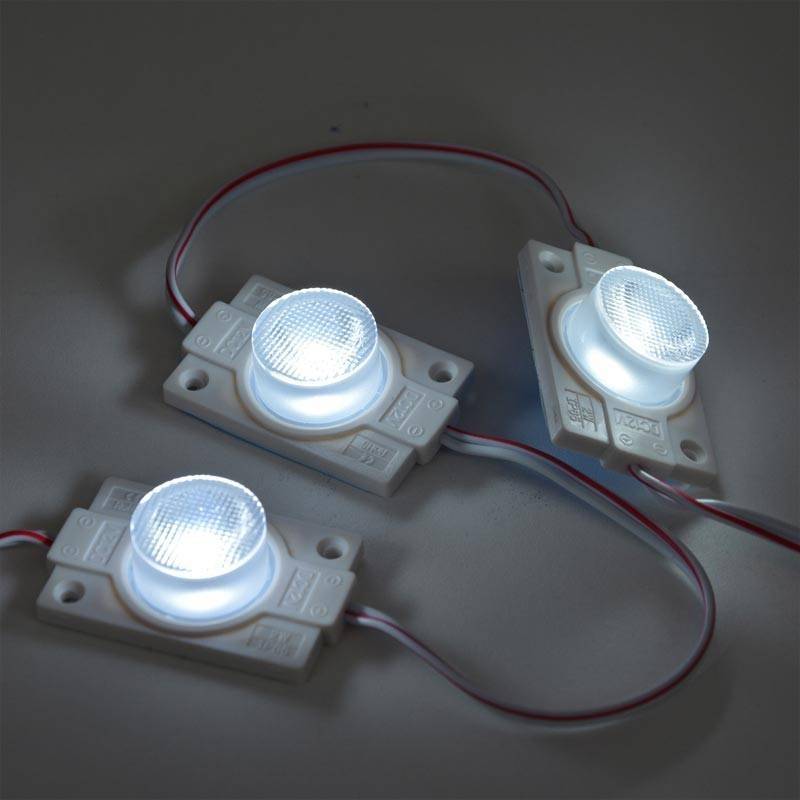

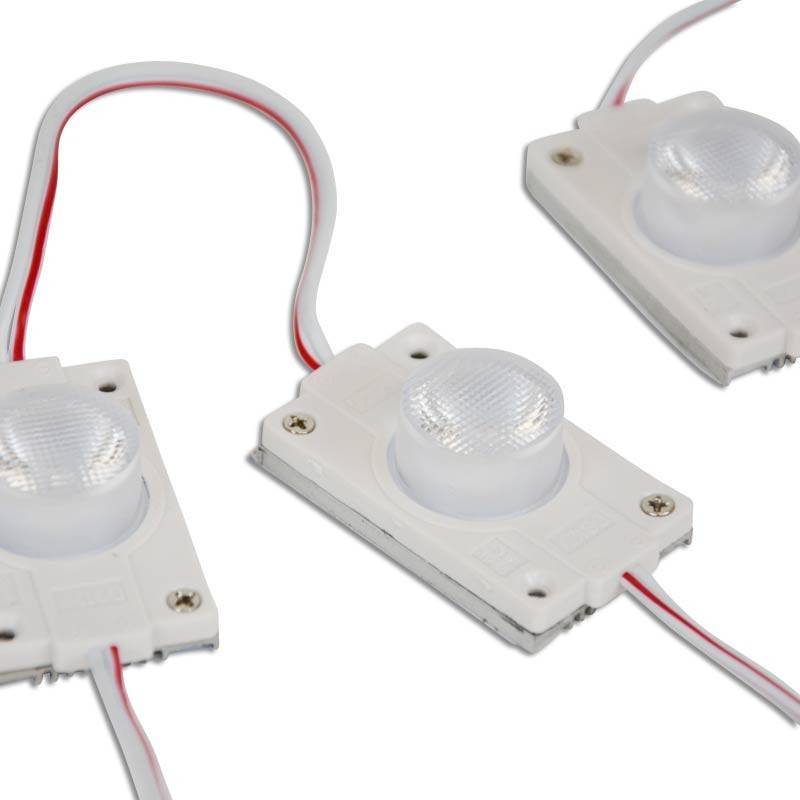

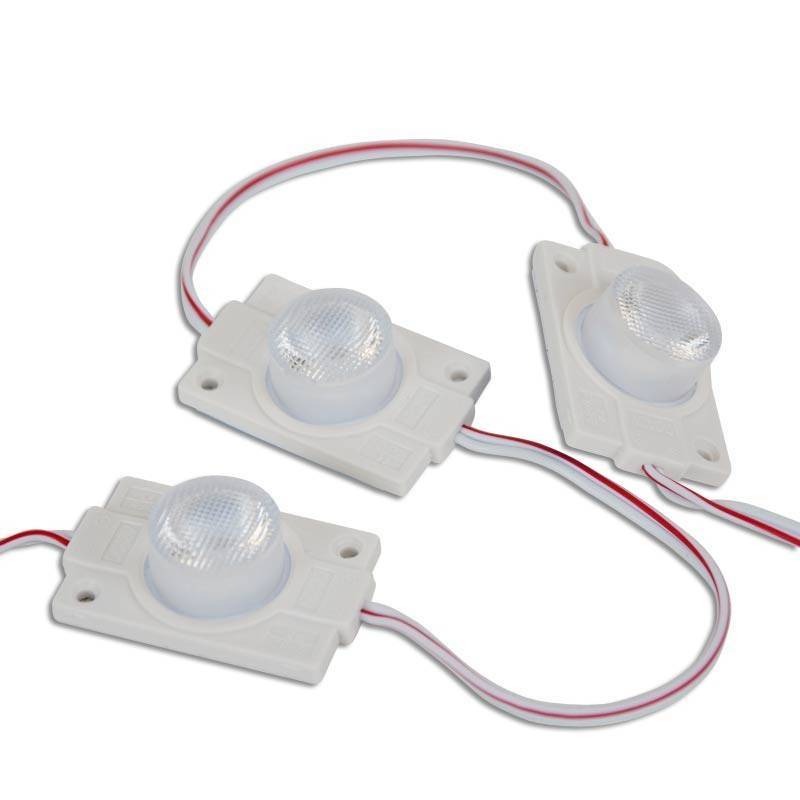

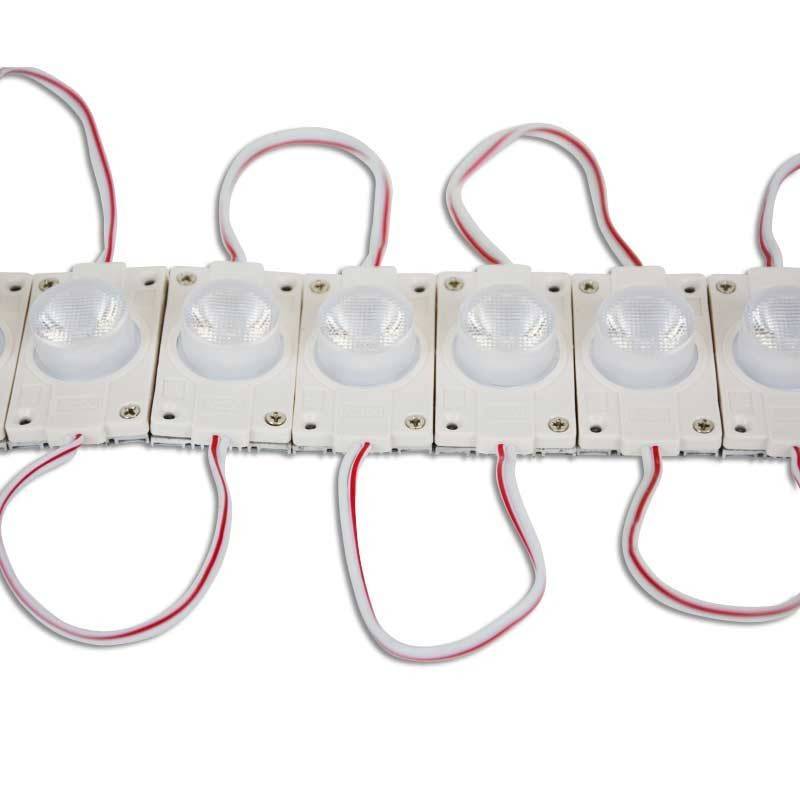

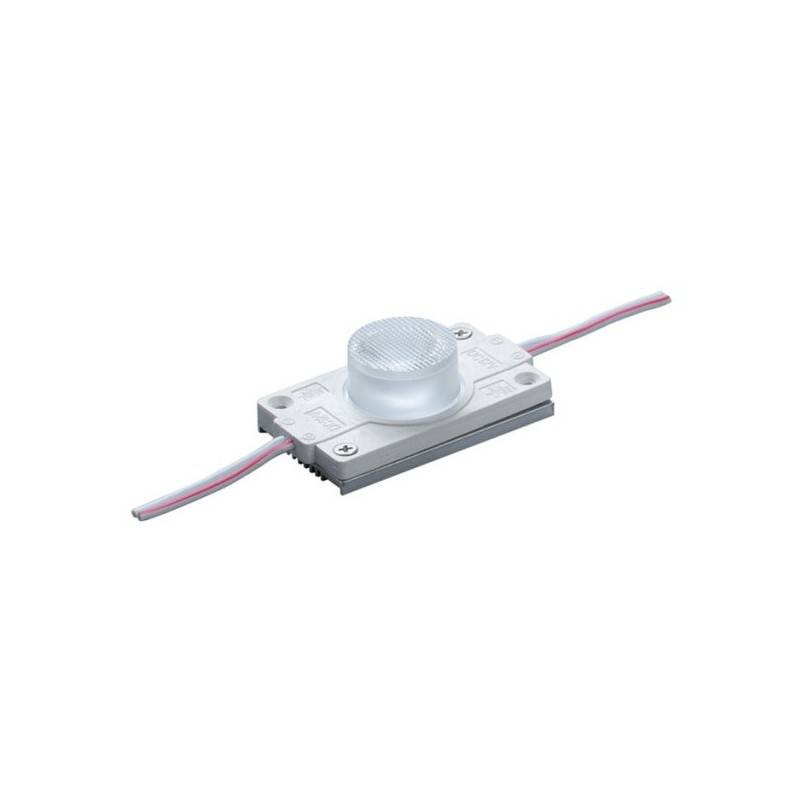

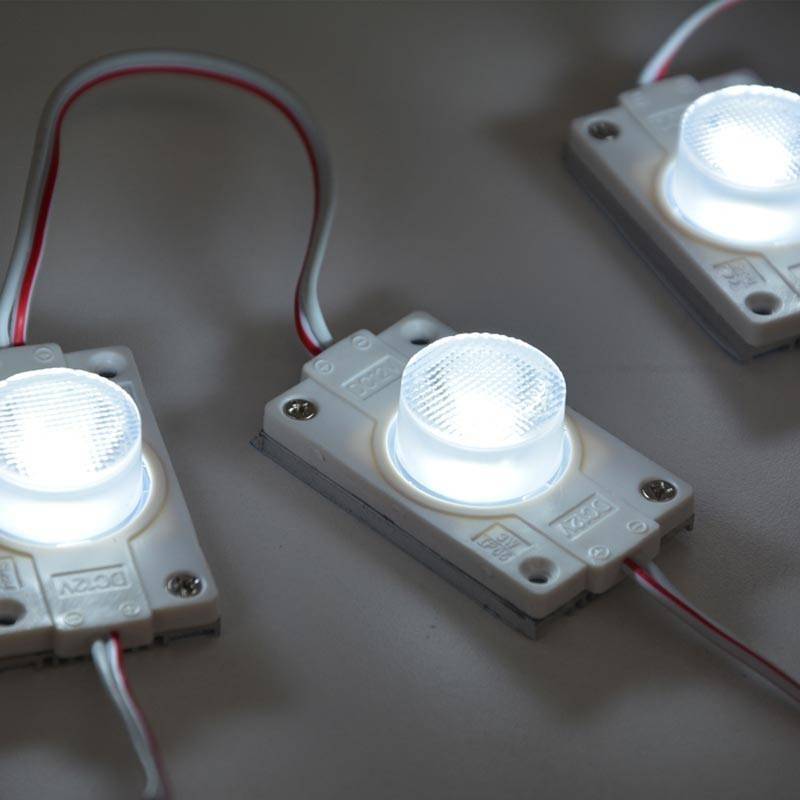

As we can see in the photos, the LED is encapsulated between a PVC lens that concentrates the light at a 15º angle with an elliptical light output (enhancing its luminous performance) and a thermoplastic piece that covers both the metal plate where the SMD3535 chip is mounted (providing high heat dissipation) and all the electrical wiring.

The product is sold by LED module unit, with a wide 3M adhesive strip incorporated on its back. They can be cut and separated according to the needs or requirements of the installation. All these advantages give the product high versatility and ease of handling.

Very bright and durable.

Proper lighting for your sign is very important to stand out from the competition and to make your name or brand memorable to people. This detail cannot be overlooked, and you must also maintain your image continuously to avoid giving a sense of neglect.

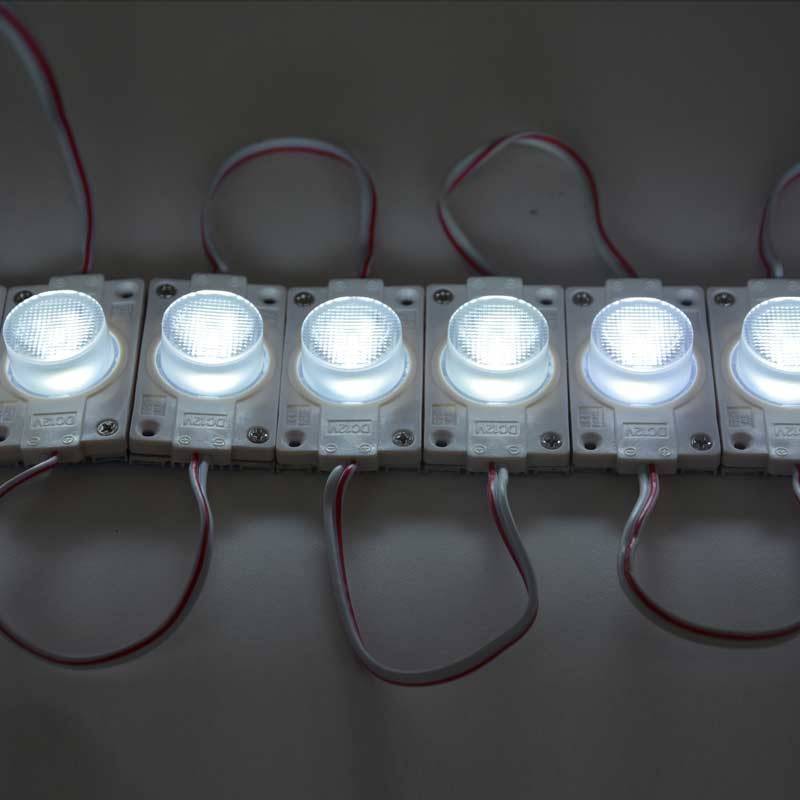

These modules will highlight your outdoor signage as well as any you may have inside your store. Their 3W power per module is equivalent to about 330 lm, and when multiplied by 20 units, that totals 60W. In terms of consumption, it's a minimal expense, providing extraordinary lighting for very little.

The LED modules are specially designed to withstand high temperatures and climate changes, which is why they are particularly suited for professional use in signage, but as mentioned earlier, their use is not limited to this area.

For proper operation, it is necessary to connect it to a 12V power supply with a power rating greater than 60W (assuming you are using all 20 modules).

Total lumens: 330 lm per module.

Available in extra-cool white color 6500ºK.

Dimmable modules

Applications of LED modules:

• Illumination of signs and light boxes, both outdoors and indoors, to highlight your products or brands.
• Lighting your sign and the entrance of the store by placing them right below the sign.
• Illumination of advertising boxes, installing the modules inside along the entire perimeter.
• Backlighting in general.
• It could be used for decorative purposes in any object, building, or room, but that is not its main function.
