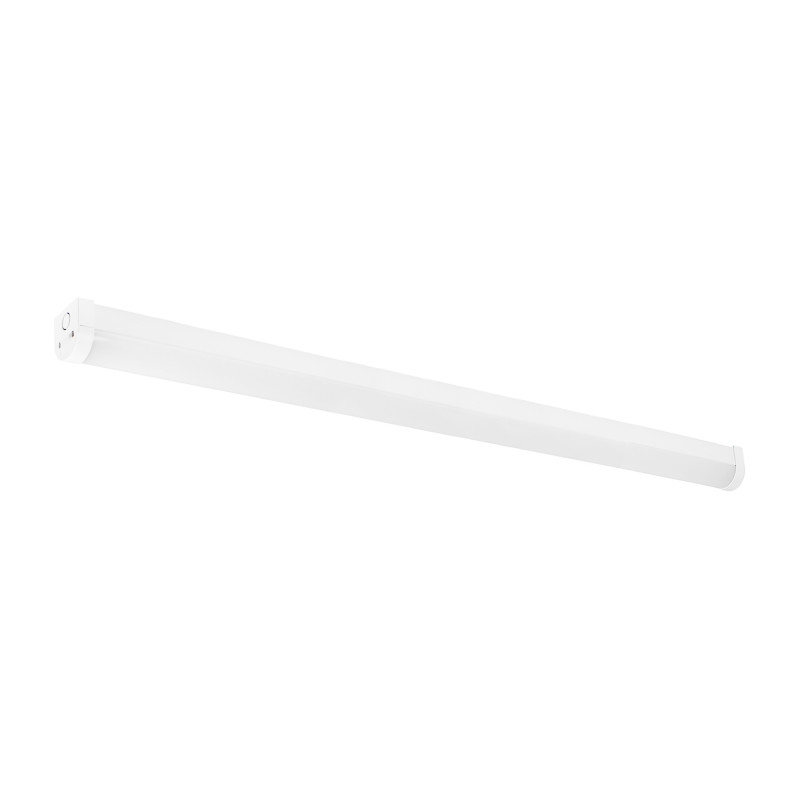

High power CCT LED linear luminaire - 40W - 120cm

https://new.barcelonaled.com/web/image/product.template/3880/image_1920?unique=79e239b

120 cm LED linear luminaire with 40W power, especially useful for replacing traditional fluorescent tubes, achieving a great energy savings.

Provides high-quality lighting, without flicker, with a luminous efficiency of 120lm/W and a CRI>80.

It incorporates a CCT selector, which allows you to change the color temperature between three different shades: warm white (3000K), neutral white (4000K), and cool white (6000K).

**Includes: screws and a set of metal staples for fastening**

Ref. B8596-CCT-120

34.94 € 34.94 EUR 34.94 € Tax Included

28.88 € Tax Included

Not Available For Sale

  • Light temperature

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Light temperature CCT (to use)
Opening angle (º) 120
Certs CE | ROHS
Energy efficiency class E
CRI 80-85
Dimensions (mm) LxWxH 1200 x 62 x 64
Dimmable No
Efficiency (Lm/w) 100
Power factor (cosφ) 0.9
Frequency (Hz) 50 - 60
Frequency of Use normal
Guarantee According to legal warranty: 3 years
IP IP20
Kelvin (K) 3000 | 4000 | 6000
Lumens (Lm) 4800
Material Metal
Material diffuser Polycarbonate
Power (W) 40
Temperature range -20°F ~ +40°F
Sensor No
Nominal Voltage (V) 220 - 240 V AC
Type of LED SMD 2835
Key Warm white | Cold white | Neutral white
UGR No
Outdoor Use No
Service life (h) 25,000
Product Image

120 cm LED CCT Linear Fixture: Design and Versatility

This LED linear fixture stands out for its modern design and excellent performance, making it ideal for replacing outdated fluorescent fixtures.

It can be easily installed on ceilings or walls without the need for an additional junction box and allows for series connection thanks to a connector that enables linking one fixture to another easily.

Optimal and personalized lighting

It provides uniform lighting without glare, with a beam angle of 120°.

It incorporates 40W SMD 2835 LED chips, with a brightness of 4800 lumens and a high color rendering index (CRI>80), ensuring a color display with great fidelity, similar to natural light.

Its CCT system allows for adjusting the color temperature in three tones (3000K, 4000K, 6000K), and its driver with EMC filter ensures flicker-free lighting and no interference.

Efficiency and durability for various usage environments

Given its efficiency and durability, this fixture is the perfect choice for areas with high hours of operation, such as parking lots, supermarkets, shopping malls, offices, and schools. However, its versatility also makes it suitable for installation in the home, providing a comprehensive lighting solution.

Advantages of LED Linear Luminaires over Fluorescent Lighting:

• Environmentally friendly, as they do not emit UV or IR radiation. They also do not contain mercury or hazardous materials.

• Maximum energy savings from incorporating LED technology.

• They generate virtually no heat.

• Always constant light, without flickering or degradation over time.

• Unlike conventional fluorescent tubes, their lifespan is not shortened by frequently turning them on and off.

• Instant on: no delays from when it turns on to when it delivers full light output.

• Easy installation: no transformers or brackets required, ready to connect to power (220-240V).

• Versatility: they allow for various uses and the ability to connect them in series without any additional accessories.
