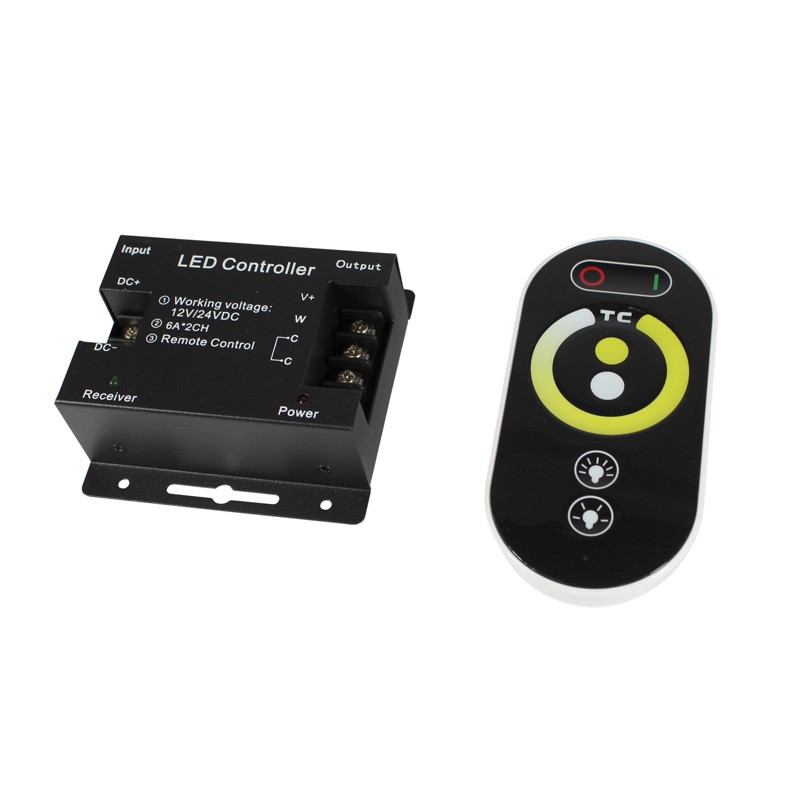

Color temperature controller / dimmer and RF controller for LED strip CCT 12/24V-DC 12A

1 review(s)
https://new.barcelonaled.com/web/image/product.template/821/image_1920?unique=c426b91

CCT Controller / Regulator of 12A (6A/channel) at 12/24V DC with remote control and 3 AAA batteries included.

Allows you to control all CCT LED lighting and change the color temperature from cool white to warm or vice versa simply by applying a gentle pressure while sliding your finger over its touch controller.

  • 12/24V
  • 6A/canal
  • IP20
  • Touch RF remote
Ref. B1626-2

16.99 € 16.99 EUR 16.99 € Tax Included

14.04 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
1
Comprador verificado
En perfecto estado

Certs CE | ROHS
Energy efficiency class A+ (2021)
Connectivity Radiofrequency
Color control CCT
Dimensions (mm) LxWxH 83x79x33
Frequency of Use Intensive
Guarantee According to legal warranty: 3 years
Maximum intensity (A) 6A/channel
IP IP20
Material Aluminum | Plastic
Number of channels 2
Number of zones 1
Power (W) 192-384 max.
Detection range (m) 30,000
Temperature range -20 ~ +60°F
Sensor Yes
Control system 12/24V-DC
Output Voltage (V) 0/24V-DC
Nominal Voltage (V) 12/24V-DC
Outdoor Use Yes, inside a waterproof box
Service life (h) <n_generated_text>35000</n_generated_text>

CCT CONTROLLER 12 AMPS AT 12/24V DC

The 12 amp CCT controller includes the remote control with its three AAA batteries, allowing you to easily select your preferred program. It is used to control the color temperature, allowing you to switch from warm white to cool white and other lighting change effects to dim the brightness of the light.



Controller Usage Remarks: Connect the charging cable first, following the power cable. The power supply voltage range is DC12/24V, a higher range may burn out the controller.

Technical specifications

REMOTE:

  • It works with 3 AAA batteries (included).
  • Manages 2 channels of 6A each simultaneously.
  • Touch CCT circle to adjust the color temperature.
  • Reception distance: 30 meters.
  • Wireless Frequency: 433.92 MHz

CONTROLLER:

  • Voltage: 12/24 Volts.
  • Output channels: 2
  • Output control: 6 Amperes per channel.
  • Connection method: Common anode.

Features of the CCT controller for LED strips:

  • Compatible with any LED CCT installation (CCT LED strips, CCT LED bulbs, etc.)
  • 25 adjustable brightness levels.
  • 100 adjustable speed levels.
  • More than 640,000 possible colors.
  • 21 default lighting effects.
  • Certifications: CE and RoHS.

Application of the LED Driver
