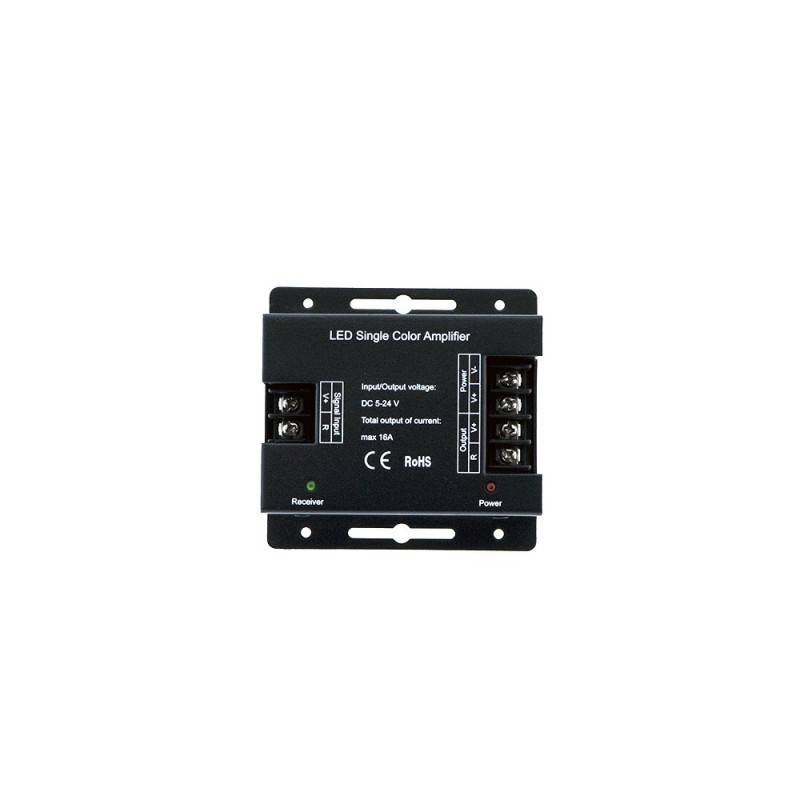

PWM 5-24V 16A single-color signal booster / repeater

https://new.barcelonaled.com/web/image/product.template/825/image_1920?unique=79e239b

1-channel PWM signal repeater for LED strips and single-color luminaires of 5-24VDC and a maximum of 16A. High-speed power amplifier (20ns), easy to install and requires no maintenance or management.

Extend the length of your dimmable LED installations with signal amplifiers using a single dimmer controller. The dimming signal will be extended linearly and without delays.

The placement of signal repeaters is independent of the installation of as many power supplies as needed to power the entire set.

  • 5-24VDC
  • 16A
  • 1 channel
  • IP20
Ref. B1624

11.99 € 11.99 EUR 11.99 € Tax Included

9.91 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Certs CE | ROHS

Single-color signal repeater/amplifier PWM 5-24V 16A

PWM signal repeater for 1 channel for LED strips and monochrome luminaires of 5-24VDC and a maximum of 16A. High-speed power amplifier (20ns), easy to install and requires no maintenance or management.

Extend the length of your dimmable LED installations with signal amplifiers using a single dimmer controller. The dimming signal will be extended linearly and without delays.

The placement of signal repeaters is independent of the installation of as many power supplies as necessary to power the entire setup. Make sure to properly power the circuit by connecting the power supply to the "POWER" connection.

It is important that the wiring is done respecting the positive and negative poles. Otherwise, the fixture may short circuit.

Technical parameters

  • Operating temperature: -20ºC to 60ºC
  • Input/Output Voltage: 5V-24VDC
  • Standby consumption: <1W
  • Maximum output current: <16A
  • Maximum output power: 384W / 24V
  • Wiring connection using a power strip
  • Dimensions: 83 x 79 x 33 mm
  • Reaction time: 20 nanoseconds

Installation Instructions (in Spanish):
