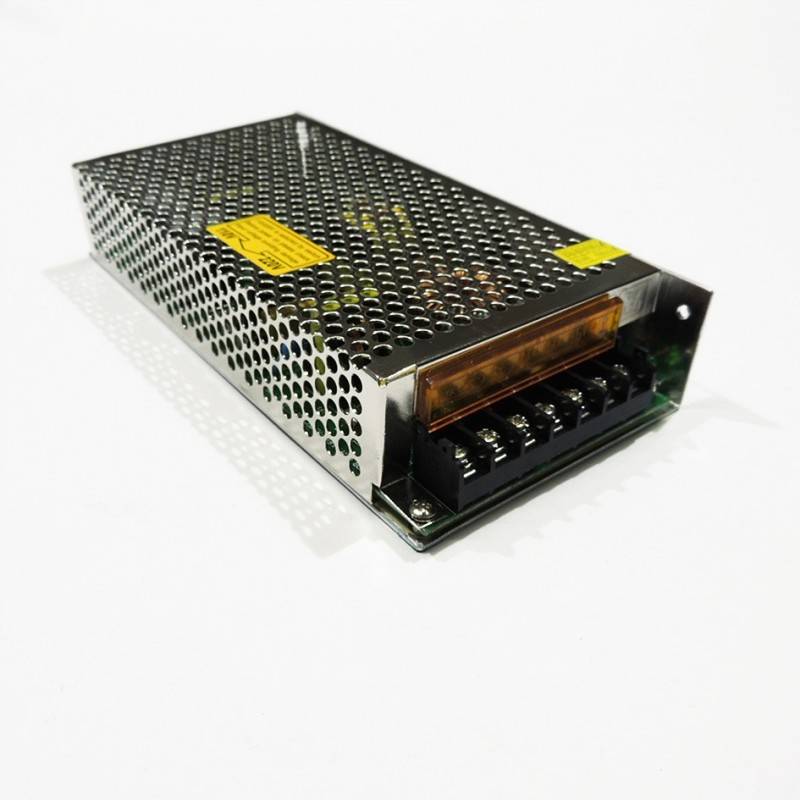

Switching power supply 24V 120W IP20

2 review(s)
https://new.barcelonaled.com/web/image/product.template/3031/image_1920?unique=947bd2d

Switched power supply for LED strips, LED neon lights, floor lights... suitable for use with all types of 24V-DC lighting fixtures with a maximum load of 12W. Input voltage 110V/230V.

For indoor use, IP20 rating.

  • 24V Output
  • Max power 120W
  • Input 110-230V
  • IP20
Ref. B1566-120

16.99 € 16.99 EUR 16.99 € Tax Included

18.97 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
2
Comprador verificado
Emite pitido agudo molesto al bajar intensidad
Comprador verificado
Perfecto!

Certs CE | ROHS
Energy efficiency class A+ (2021)
Dimensions (mm) LxWxH 199x98x41
Power factor (cosφ) 0.5
Frequency (Hz) 50 - 60
Frequency of Use normal
Guarantee According to legal warranty: 3 years
Maximum intensity (A) 5
IP IP20
Material Aluminum
Power (W) 120
Temperature range -20°F ~ +40°F
Output Voltage (V) 24V
Nominal Voltage (V) 110-230
Outdoor Use No
Service life (h) 25,000

SWITCHING POWER SUPPLY 120W (OUTPUT 24V-DC 5A) IP20

The 120W switched-mode power supply has a switch to select the input voltage of 110-AC or 230V-AC and an output of 24V-DC 5A. The output voltage can be adjusted around ±10%, and by compensating for the voltage drop between the power supply and the consumption point, it can distance the source from the consumption point. The power supplies are equipped with overload and overvoltage protection, and their housing is made of perforated sheet metal, allowing for natural air convection cooling.

Applications:

Power supply for 24V-DC LED strips, as well as any other element with a working voltage of 24V-DC, as long as it does not exceed the maximum power of the source.

Suitable for all types of uses: domestic, commercial, office, restaurant, and hospitality, etc.

Technical specifications:

  • Output voltage: 24 V Direct current
  • Error: ± 1%
  • Output current: 0 ~ 5A
  • Output power: 120W DC
  • Efficiency: 81%
  • Voltage range: 23.76~ 24.24V
  • Input range: 85 ~ 180 V ~ 132V AC 264V AC 63Hz ~ 47 255 ~ 370V DC
  • Overload Protection: 105% ~ 150% (protection type: reduce input power reset: auto recovery)
  • Inlet Stability: ± 0.5%
  • Temperature coefficient: 0-50°C
  • Setup, location, wait time: 100 ms 200 ms 30 ms
  • Operating temperature: -10 ~ +60
  • Three connections.
  • Limit temperatures: -20 ~ +85
  • Dimensions: 199 * 98 * 37 mm
  • Weight: 0.6kgs
