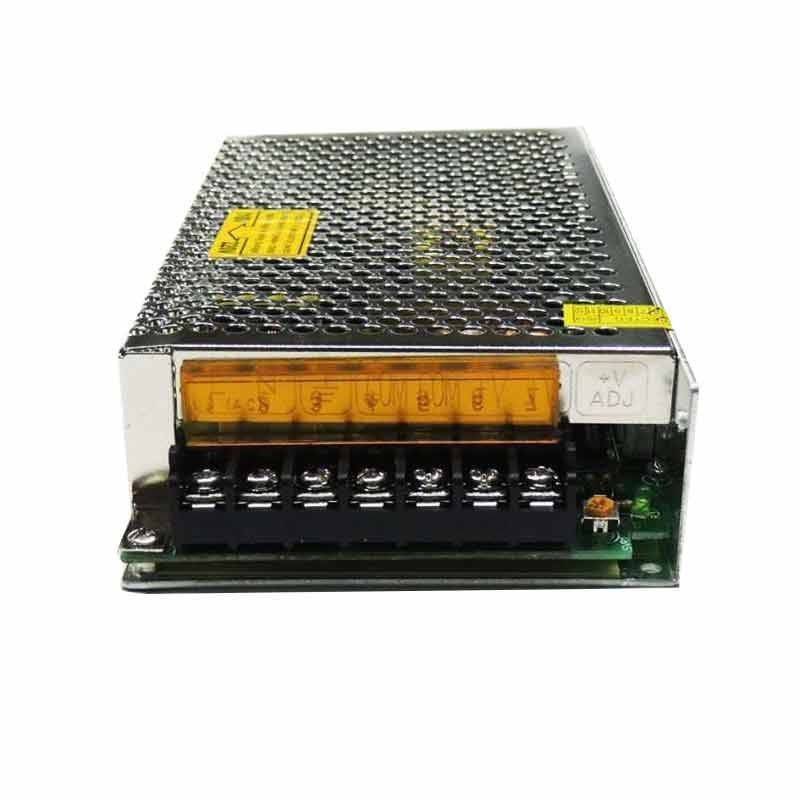

Switching power supply 24V 100W IP20

3 review(s)
https://new.barcelonaled.com/web/image/product.template/3030/image_1920?unique=1322db1

Switched power supply for LED strips, LED neon lights, floor lights... suitable for use with all types of 24V-DC luminaires with a maximum load of 100W. Input voltage 110V/230V.

For indoor use, IP20 rating.

  • 24V Output
  • Maximum power 100W
  • Input 110-230V
  • IP20
Ref. B1566-100

15.99 € 15.99 EUR 15.99 € Tax Included

18.14 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
3
Lorena López Gil
Buenas conexiones. Producto recomendado
Comprador verificado
Efectivo
Comprador verificado
lo esperado aunque con el led encendido, el transformador hace un pitido constante que en el silencio, lo acabas escuchando y llegando a molestar.

Certs CE | ROHS
Energy efficiency class A+ (2021)
Dimensions (mm) LxWxH 159x98x41
Power factor (cosφ) 0.5
Frequency (Hz) 50 - 60
Frequency of Use normal
Guarantee According to legal warranty: 3 years
Maximum intensity (A) 4
IP IP20
Material Aluminum
Power (W) 100
Temperature range -20°F ~ +40°F
Output Voltage (V) 24V
Nominal Voltage (V) 110-230
Outdoor Use No
Service life (h) 25,000
Product Image

Switched power supply 24V 100W 4.2A IP20

The switched-mode power supply of 100W has a switch to select the input voltage of 110VAC or 230VAC and an output of 24VDC 4A. The output voltage can be adjusted around ±10%, and by compensating for the voltage drop between the power supply and the consumption point, it can distance the power supply from the consumption point. The power supplies are equipped with overload and surge protection, with their housing being made of perforated metal. This allows for cooling by natural air convection.

Applications: Its main function is to power 24V-DC LED strips, as well as any other element with a working voltage of 24V-DC, as long as it does not exceed the maximum power of the supply. Suitable for all types of uses: residential, commercial, office, catering, and hospitality, etc.



  • Output voltage: 24 V Direct current
  • Error: ± 1%
  • Output current: 0 ~ 4A
  • Output power: 100W DC
  • Efficiency: 81%
  • Voltage range: 23.76~ 24.24V
  • Input range: 85 ~ 180 V ~ 132V AC 264V AC 63Hz ~ 47 255 ~ 370V DC
  • Overload Protection: 105% ~ 150% (type of protection: reduce the input power reset: auto recover)
  • Inlet Stability: ± 0.5%
  • Temperature coefficient: 0-50°C
  • Setup, place, wait time: 100 ms 200 ms 30 ms
  • Operating temperature: -10 ~ +60
  • Three connections.
  • Limit temperatures: -20 ~ +85
  • Dimensions: 199 * 98 * 37
  • Weight: 0.6kgs
