This 12V power supply is ideal for LED strips up to 120W.

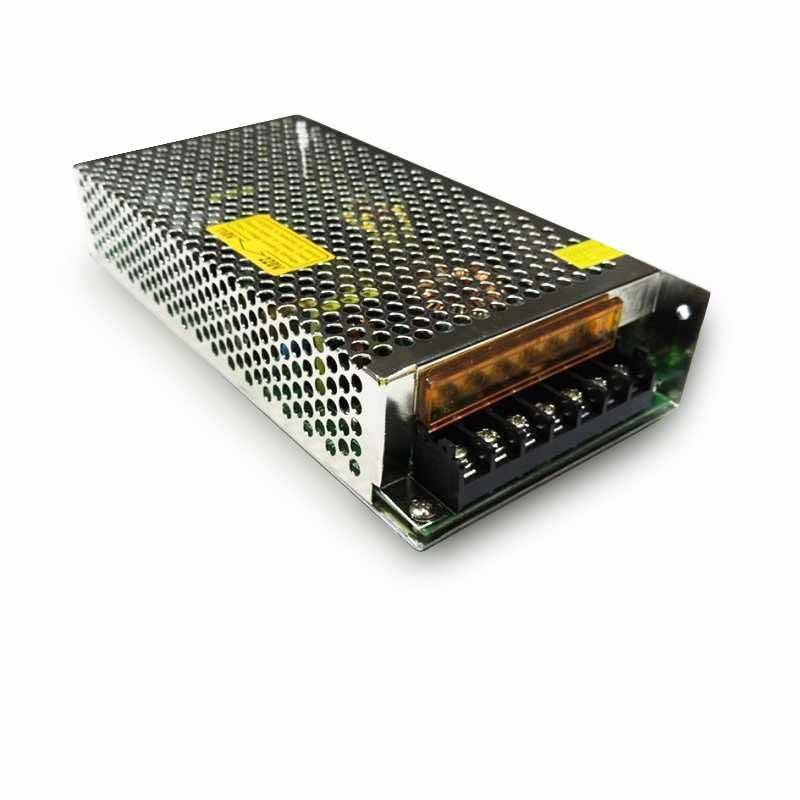

The 120W switched power supply features a switch to select the input voltage of 110-AC or 230V-AC and an output of 12V-DC 5A. The output voltage can be adjusted around ±10%, and by compensating for the voltage drop between the power supply and the load point, it can be placed away from the load point. The power supplies are equipped with overload and surge protection, with a perforated metal casing. This allows for natural air convection cooling. Its external dimensions are 199x98x38mm (width x height x depth), with an IP20 ingress protection rating.
Applications:
Its main function is to power 12V-DC LED strips, as well as any other device operating at 12V-DC, provided it does not exceed the maximum power of the power supply.
Suitable for all types of uses: home, commercial, office, catering, and hospitality, etc.
* Technical specifications:
Output voltage: 12V DC
° Error: ± 1%
Output Amperage: 0 ~ 8.5A
° Wave and noise: 100mp-p
Output power: 120W DC
º Efficiency: 81%
° Voltage range: 10.8 ~ 13.2V
Input range: 85 ~ 180 V ~ 132VAC 264VAC 63Hz ~ 47 255 ~ 370VDC
º Protection 12. Overload: 105% ~ 150% (type of protection: reduce the input power reset: auto recover)
º Stability 13. Inlet: ± 0.5%
° Temperature Coefficient: 0-50°C
º Setup, location, wait time: 100 ms 200 ms 30 ms
Working temperature: -10 ~ +60
Limit temperatures: -20 ~ +85
Dimensions: 199 * 98 * 38
Weight: 0.65kgs
