LED Strip 24V-DC 120W RGB IP20 SMD3535 PCB 12mm Roll 5 meters

https://new.barcelonaled.com/web/image/product.template/468/image_1920?unique=79e239b

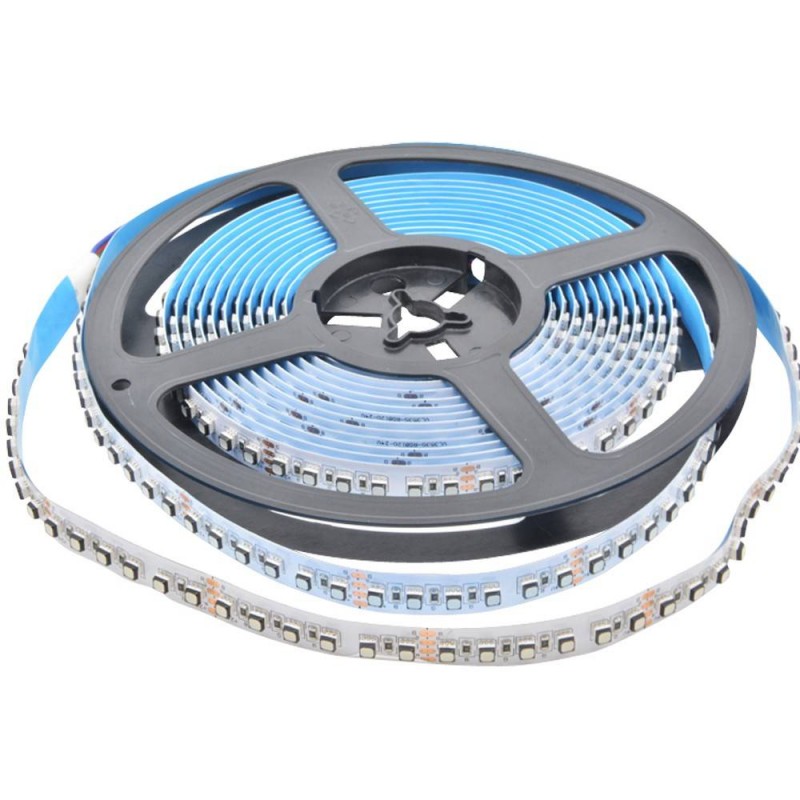

High power LED strip of 5 meters in length. It has 120 SMD3535 per meter and an IP20 protection rating. It includes a 3M adhesive tape to facilitate installation and for proper heat conduction. The cutting measure is 5cm. Width of the LED strip: 12mm.

It must be used with an aluminum profile to dissipate heat and with a stable 24V-DC power supply. The power of the strip is 24W per meter.

Ref. B1547-IP20

27.99 € 27.99 EUR 27.99 € Tax Included

23.13 € Tax Included

Not Available For Sale

  • Light temperature

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
0

Light temperature RGB (use)
Adhesive 3M
Track width (mm) 12
Opening angle (º) 120
Certs CE | ROHS
Energy efficiency class A++ (2021)
Dimensions (mm) LxWxH 5000 times 12
Dimmable Yes
Cut distance (mm) 50
Frequency (Hz) 50 - 60
Guarantee According to legal warranty: 3 years
IP IP20
# Chips per meter 120
Power (W) 120
Nominal Voltage (V) 24V DC
Type of LED SMD 3535
Key RGB
Outdoor Use No
Service life (h) 25,000
Product Image

High-power RGB LED strip with 120 chips per meter

The RGB LED Strip is a powerful strip with great brightness. It features 120 Chips per meter (SMD3535), which makes the light it emits completely homogeneous along the entire strip. It is of high quality and ideal for creating ambient lighting to your taste. The strip is flexible and easy to install as it has a 3M adhesive on the back that allows for ideal thermal conduction. Due to its power, the strip needs to be used with an aluminum profile to dissipate heat and prolong its lifespan. We recommend using the 17x15 profile.



This LED strip requires a stable 24V power supply, with a perfect calibration for its proper functioning; it is preferable to install it with the help of a professional. The strip features a combination of red, green, and blue LEDs for each SMD, allowing it to project any color resulting from the mixture of the three primary colors. To achieve this, it is necessary to connect the strip to an RGB controller.



If the strip is going to be connected in series, the maximum length must be 10 meters.

Features of the RGB LED Strip

  • Chips per meter: 120
  • CHIP: SMD3535
  • Voltage: 24V-DC
  • Cut-off distance: 50mm
  • Thickness: 12mm
  • IP 20
  • Candelas: 3000 mcd per Chip
  • Use with aluminum profile
  • Power: 24W per meter. 5-meter roll 120W
  • Storage temperature: -40~+80°C
  • Operating Temperature: -20~+40oC

LED Strip Care:

  • It must be placed on an aluminum profile to dissipate heat.
  • The installation surface must be smooth, clean, and dry. Minimum turning radius 5mm.
  • The strip must not be broken. It should only be cut along the indicated cut lines.
  • If connected in a series circuit, it should not measure more than 10 meters.

Applications of High Power LED Strip

  • Emergency lighting.
  • Indirect lighting.
  • Creation of environments in bars, music venues, nightclubs, etc.
  • Stair lighting.
  • Backlight for signage boards.
  • Decorative facade lighting.
  • LED strip installations where long distances are necessary.
