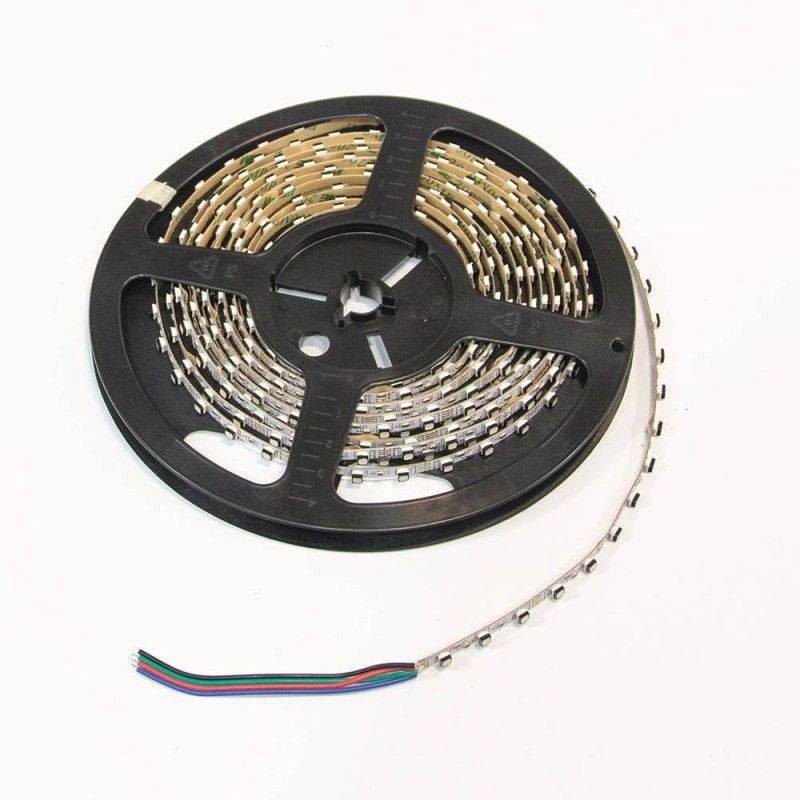

LED Strip 12V-DC 72W width 5mm multicolor RGB IP20 (SMD3535 72ch/m) 5 meter roll

LED STRIP 12V DC 72W PCB 5MM 5 METERS RGB IP20 (SMD3535 72CH/M)

The LED strip is an element that integrates into your projects with minimal visual impact, creating indirect and diffused lighting that highlights architectural elements.

The SMD3535 LED strips are low power and low consumption. An average consumption of 14.4W/m is estimated. They can be cut every 41.3mm, allowing them to be adapted and spliced according to the needs of each project.

Installation:

The LED strip comes with 3M self-adhesive tape on the back. Place it on a smooth, non-porous surface, and make sure to clean it beforehand. Being a flexible strip, it can be used on tight curves. The mounting against the power supply can be done using connectors or by directly soldering the wire to the power supply.

For a complete LED strip installation, you will need a controller, a power supply, and optionally, aluminum profiles (surface-mounted or recessed). It is estimated that for 12V LED strips, if you want to make runs longer than 5 meters, you will need to install additional power supplies and signal amplifiers to avoid voltage drops.

Features of the 5mm RGB LED strip:

• 12V LED Strip 72W
• 5-meter reel
• 72 chips per meter SMD3535
• Cut-off distance 41.3mm
• IP20 protection rating
• PCB Width: 5 mm
• 3M Self-adhesive
• Flexible, high brightness and luminosity
• Requires a power supply (not included)

Recommended uses:

• Highlight architectural outlines

• Under cabinet and shelf lighting, display cases

• Hallways, display windows, with indirect lighting

Recommended use of aluminum profile 8x12 surface / 13x12 for recessed installation
