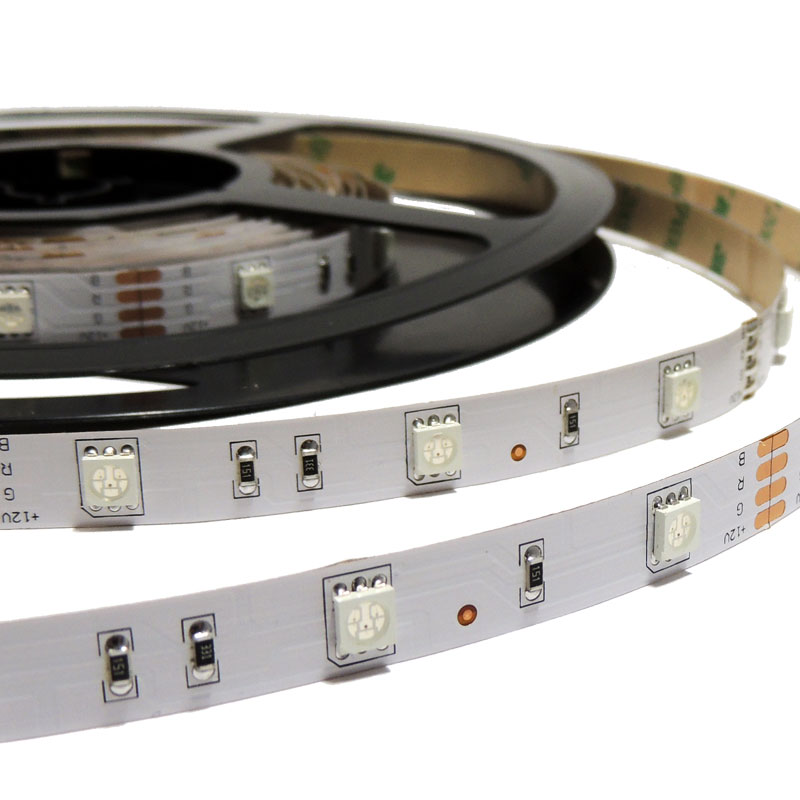

LED Strip 12V-DC 36W 10mm multicolor RGB IP20 (SMD505050 30ch/m) 5 meters Roll

12V-DC 36W LED Strip (150 SMD5050), 5m Roll, IP20, 120º Angle, RGB, Cut every 10cm

• 12V 36W LED Strip

• 5 meter reel

• 30 chips per meter SMD5050

• Cut-off distance 100mm

• IP20 protection rating

• PCB Width: 10 mm

• 3M Adhesive

• Flexible, high brightness, and luminosity

• Requires power supply (not included)

The LED strip is a component that integrates into your projects with minimal visual impact, creating indirect and diffuse lighting that highlights architectural elements.

The SMD5050 LED strips are low power and low consumption. An average consumption of 7.2 W/m is calculated. They can be cut every 100mm, allowing them to be adapted and spliced according to the needs of each project.

Installation:

The LED strip comes with 3M adhesive tape on the back. Place it on a smooth, non-porous surface, and make sure to clean it beforehand. Being a flexible strip, it can be used on tight curves. The connection to the power supply can be made using connectors or by directly soldering the wire to the power supply.

For a complete LED strip installation, you will need an RGB controller, a power supply, and optionally, aluminum profiles (surface-mounted or recessed). It is estimated that for 12V LED strips, if you want to run lengths longer than 5 meters, you will need to install additional power supplies and signal amplifiers to avoid voltage drops.

Recommended uses:

• Highlight architectural contours

• Under-cabinet and shelf lighting, display cases

• Hallways, display cases, with indirect lighting
