Innovative transformation of LED fixtures to emergency light

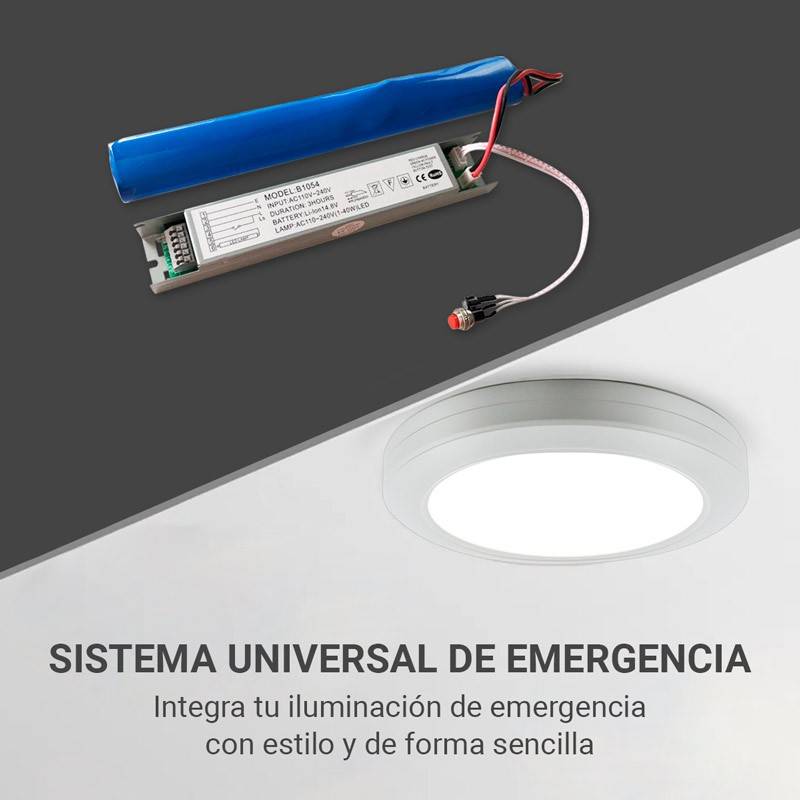

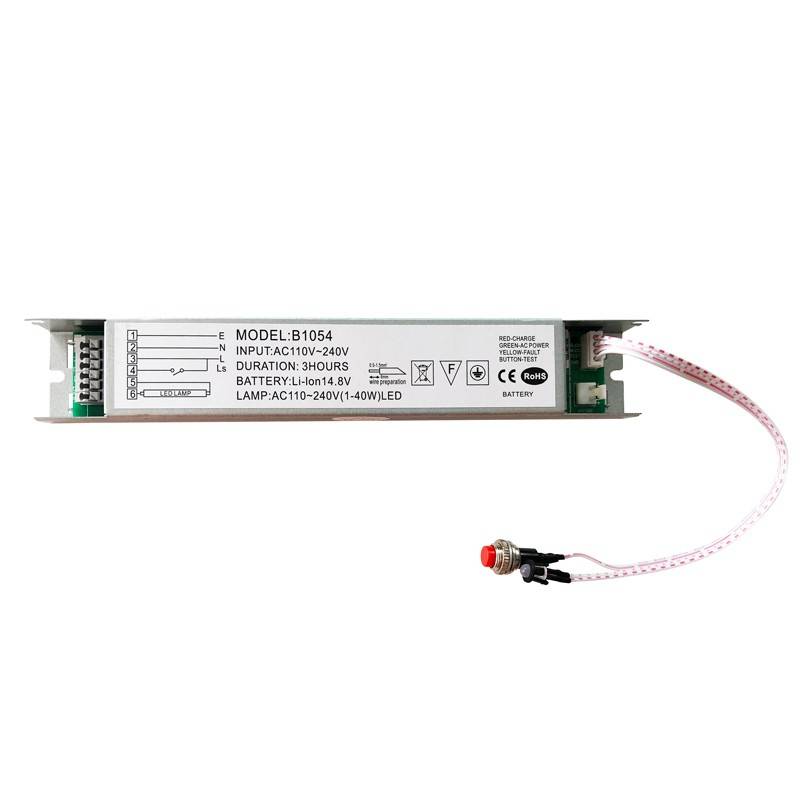

LED Luminaire Conversion Kit to Emergency Light, a versatile solution that transforms any conventional LED luminaire into an effective emergency light source in situations of power outages.
It allows you to adapt all the LED lights in your home or commercial establishment, providing them with the crucial functionality of emergency or backup lighting during unexpected power outages.

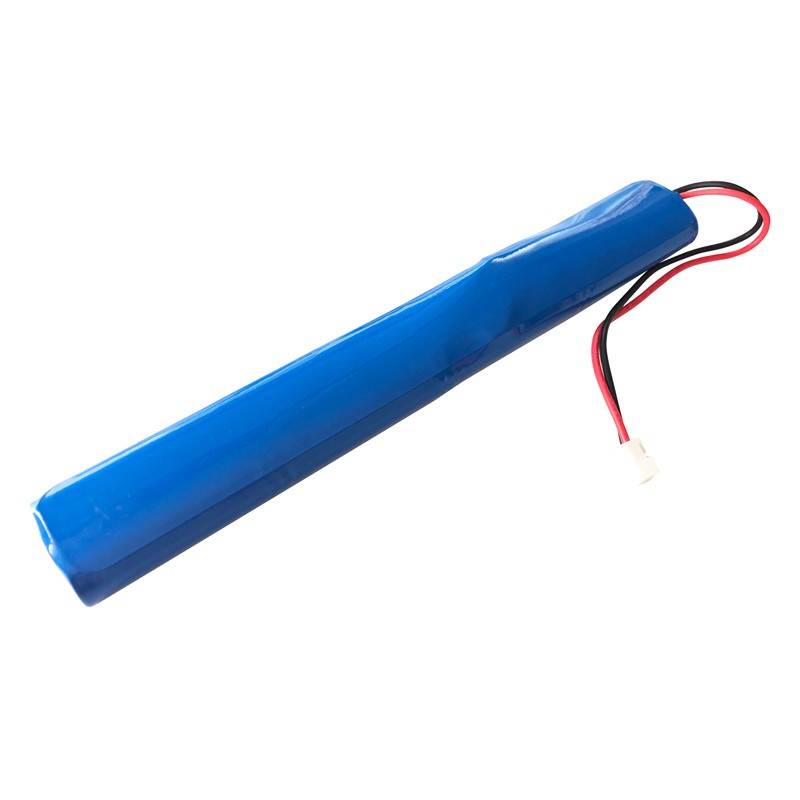

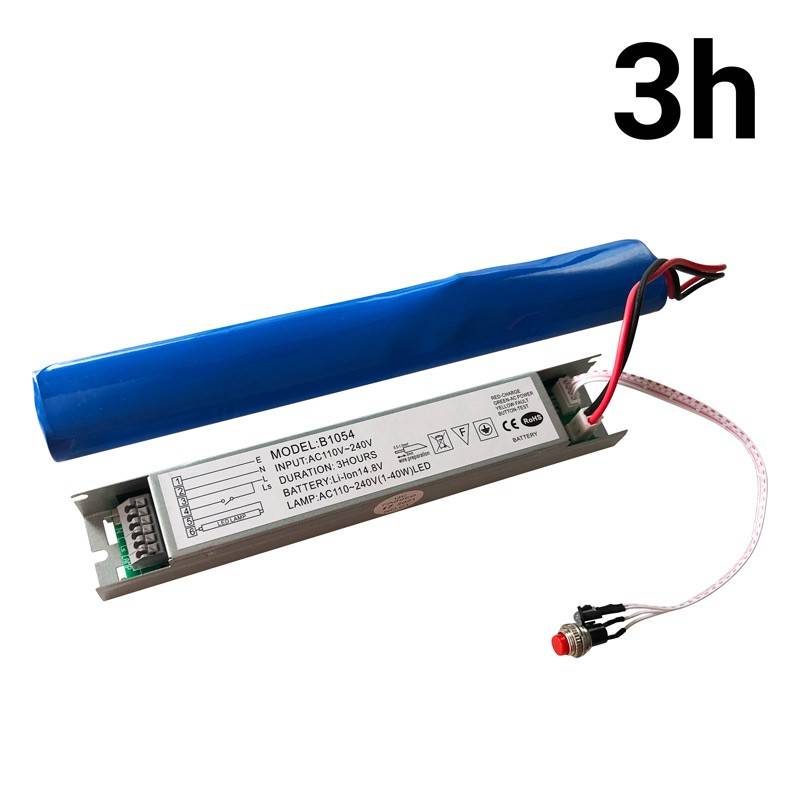

It incorporates a 14.8V lithium battery that provides a runtime of 3 hours, with a maximum power of 45W.
Guarantees a power output of 100%, meaning that if the powered luminaire is 18W, after using the conversion kit it will still be 18W. It will maintain the same brightness as before and the same quality transformed into emergency lighting.
Where to install the conversion kit?
It should be considered that emergency lights are installed at least 2 meters above ground level. Their applications are varied, among which we can highlight:
- ✔ Home
- ✔ Offices
- ✔ Emergency exits.
- ✔ Parking spaces and storage rooms.
- ✔ Emergency stairs.
- ✔ Businesses and large retail stores.
- ✔ Warehouses.
Automatic periodic self-check system:
- Monthly self-test mode: The system enters emergency mode monthly for 2 minutes to check the mains power circuit, the luminaire, and the battery.
- Annual self-check mode: The system enters a 60-minute emergency mode annually for battery testing and maintenance.
- Emergency mode: the system discharges and the light fixture turns on automatically. If no light fixture is connected to the conversion kit, the emergency mode will turn off automatically to prevent electric shock.

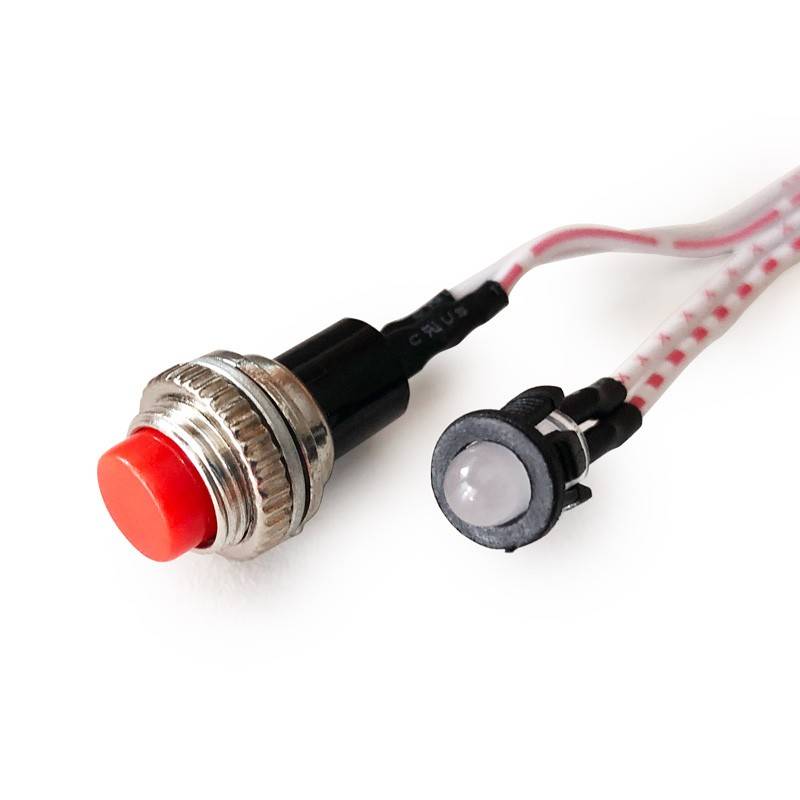

Button to test the emergency light
- Pressing the button for:
- 1~3s: The LED indicator blinks green at a frequency of 1Hz. The system enters manual check mode and discharges for 5 seconds.
- 3~5s: The LED indicator blinks green at a frequency of 2HZ. The system enters monthly self-check mode and powers down for 2 minutes.
- 5~7s: El indicador LED parpadea en verde en la frecuencia de 3HZ. El sistema entra en el modo de autocomprobación anual y descarga durante 1 hora.
- more than 7s: the system stops discharging to recharge again.

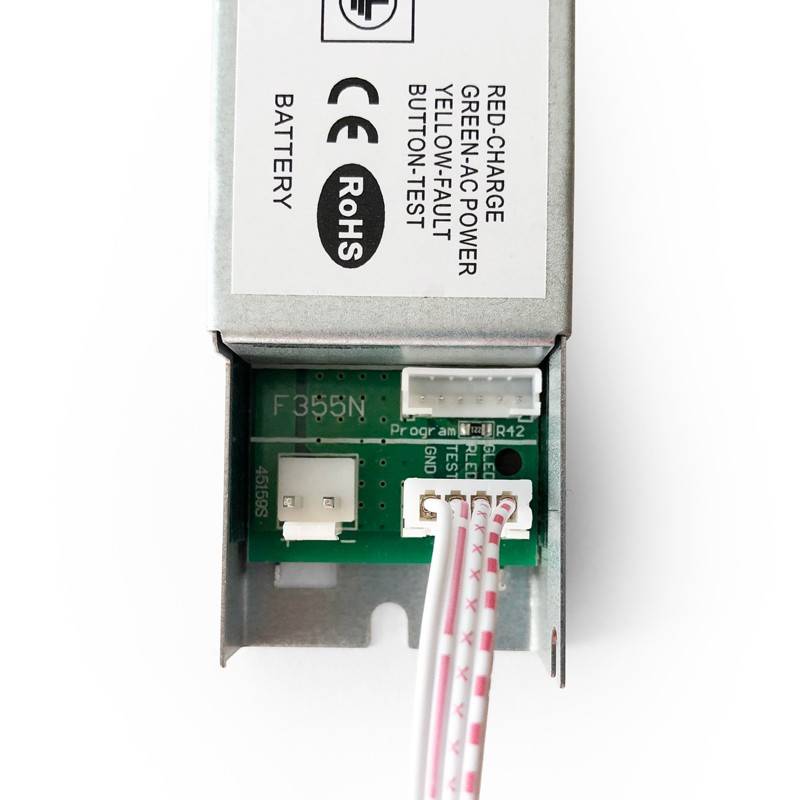

Tricolor Indicator Instructions
- Red: The red indicator means that it is charging.
- Green: The green indicator shows that it is fully charged. If the indicator is flashing, it indicates the check and self-check process explained earlier.
- Yellow: The yellow indicator indicates a short circuit or an emergency time that is too short. The indicator blinks yellow at a frequency of 1 Hz to indicate a battery error. The indicator blinks yellow at a frequency of 3 Hz indicating an error in the emergency lighting fixture.
