LED EMERGENCY LIGHTS AUTOTEST | Rex Mini Agolar
With the LED AUTOTEST emergency light, we have real-time information on the device's status, automatically performing all the tests specified in the UNE-EN-50172 standard. Non-permanent emergency lighting of 60 lumens allows us to illuminate the area during a power outage. Emergency lights are essential for the safety of any space or event.
✔ 60lm
✔ IP65.
✔ Material: Polycarbonate; Opal Diffuser.
✔ AUTOTEST.
Product Features
✔ Recessed or surface-mounted.
✔ Recessed dimensions: 278x115x36mm.
✔ Surface dimensions: 255x89x37mm.
✔ Cutout dimensions: 263x97mm.
✔ Ni/Cd battery.

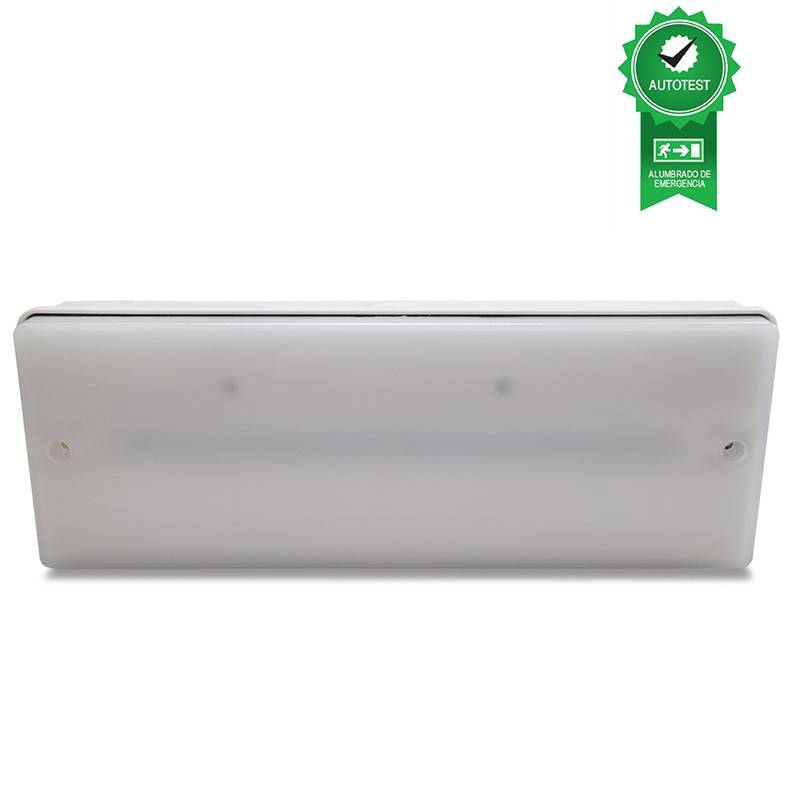

Emergency Light AUTOTEST REX MINI 60 lumens
Non-permanent emergency lighting, which operates only in the absence of mains power. Comes with a pre-plate for easy installation and maintenance. Made of polycarbonate under standards: UNE-EN 60598-2-22, UNE-EN 60598-1, UNE-EN 62031, and UNE-EN 62384.
Contains 21 SMD5730 LED chips with a total of 60 lumens, high quality, providing clear and uniform lighting. Sealed Ni/CD battery, activates automatically with a runtime of 1 hour. High IP65 protection rating. Opal matte diffuser.
The AUTOTEST emergency lights are highly recommended by the REBT (Low Voltage Electrotechnical Regulation) as it recommends conducting periodic checks of the safety lighting system at least every 3 years. With AUTOTEST emergency luminaires, it reports in real-time the status of the luminaire, automatically performing all the tests indicated in the UNE-EN-50172 standard.
Network presence and battery charge indicator LED. Using an LED diode, it indicates whether the voltage is connected and the accumulated battery charge. Luminous intensity of 60 lumens. Made from injection-molded polycarbonate, with a frosted diffuser that prevents viewing the interior.
Advantages of Mini Rex Emergency Luminaires
Illuminates exits or any necessary service during a power outage, and additionally, the AUTOTEST system provides greater security for the premises by reporting the status of the emergency lighting in real time. You can install as many as you need, considering the installation and location regulations, depending on the area.
- ✔ Autotest.
- ✔ LED indicator for network presence and battery charging.
- ✔ Polycarbonate and opal diffuser.
- ✔ Emergency exits.
- ✔ Remote controllable.
- ✔ Not permanent, works only in the absence of power.
- ✔ Installation with pre-plate.
- ✔ Surface installation (ceiling or wall) and recessed (with accessory not included).
- ✔ IP65.
Recessed or surface-mounted emergency lights
The Agolar AUTOTEST Rex Mini emergency light can be mounted on either wall or ceiling and can be installed in two ways:
- Recessed Lights: With the accessory not included for recessed installation. Replace the old fixture with this one by placing the emergency light in the hole using the accessory. Once the cut and wiring connection are made, you just need to insert the fixture into the opening by pushing back the spring clips that will hold the emergency light in place.
- Surface: Replace old emergency lights. You will only need to install it with the wiring connection on the wall or ceiling quickly and easily.
Where to place the emergency lights?
The regulation establishes places that must have emergency lighting: Any area occupied by more than 100 people, premises containing general fire protection equipment, general restrooms in public buildings, places containing distribution or control panels for the lighting installation, etc.
- ✔ Emergency exits.
- ✔ Parking lots and storage rooms.
- ✔ Emergency stairs.
- ✔ Businesses and large retailers.
- ✔ Warehouses.
- ✔ Offices
Technical specifications
✔ Battery: Ni-Cd.
✔ AUTOTEST.
✔ Voltage: 220-240-V/AC.
✔ Material: Polycarbonate and Opal diffuser.
✔ 60 lumens.
✔ 1hr of autonomy.
✔ Surface dimensions: 255x89x37mm.
✔ Recessed dimensions: 278x115x36mm.
✔ Cut-out dimensions: 263x97mm.
✔ IP65 protection rating.
✔ Non-permanent.
