LED Strip 24V-DC 96W RGBWW IP20 (SMD5050) 5 meters Roll

2 review(s)
https://new.barcelonaled.com/web/image/product.template/2326/image_1920?unique=1593769

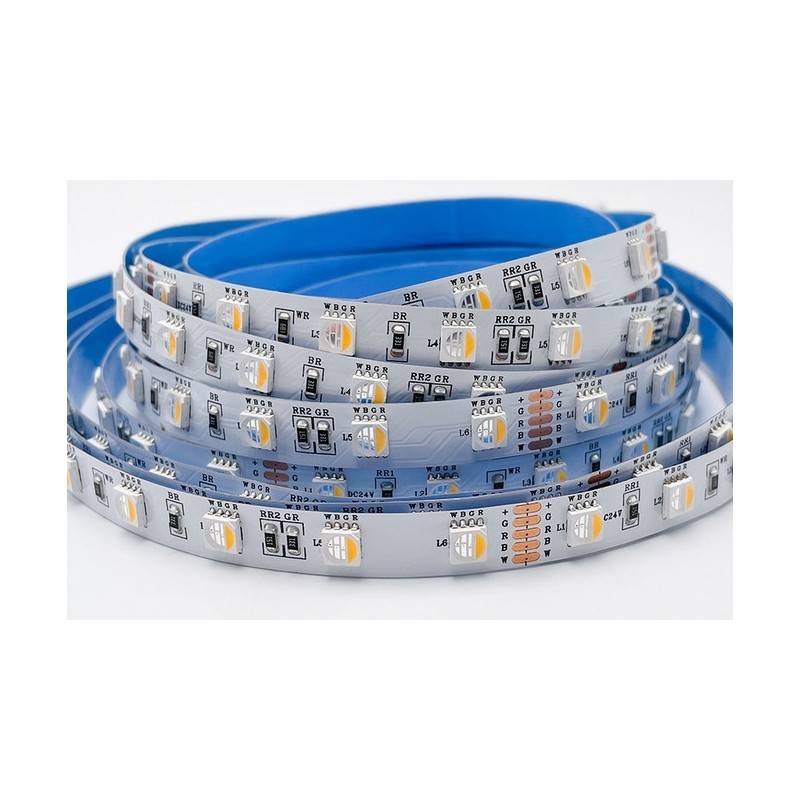

RGBWW LED Strip 24V-DC 96W (300 SMD5050 chips) 12mm PCB 5-meter roll, cut every 10cm. The acronym RGBWW means that any color in the RGB spectrum can be tinted towards warm white colors (WW=Warm White). As a result, we obtain a strip with an infinite range of colors where any color can be converted into a lighter one. Create warmer or cooler environments depending on your needs.

  • 24V-DC
  • 96W
  • IP20
  • 120 degrees
  • RGBWW
Ref. B1548RGBWW

16.99 € 16.99 EUR 16.99 € Tax Included

14.04 € Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Share

Download product data sheet
Product Review's
2
Comprador verificado
Buen producto calidad precio
Comprador verificado
los colores son de poca calidad.

Adhesive 3M
Track width (mm) 12
Opening angle (º) 120
Certs CE | ROHS
Energy efficiency class A++ (2021)
CRI 80-85
Dimensions (mm) LxWxH 5000 times 12
Dimmable Yes
Cut distance (mm) 100
Efficiency (Lm/w) 50
Frequency (Hz) 50 - 60
Guarantee According to legal warranty: 3 years
IP IP20
Lumens (Lm) 4800
# Chips per meter 60
Power (W) 96
Power/m (W/m) 19.2
Nominal Voltage (V) 24V DC
Type of LED SMD 5050
Key RGB-WW
Outdoor Use No
Service life (h) 25,000
Product Image

The RGBWW LED Strip 24V offers you endless color combinations

The RGBWW LED strip is one of the most technologically advanced and highest quality strips in our catalog. It incorporates warm white light diodes in this case, (there is also one with cool white light). RGBW LED strip), allowing you to use the strip for decorative purposes or to create ambiance with colored light, even adjusting that color to warmer tones thanks to its WW option. If you only want to illuminate, this is also possible with its warm light LEDs, providing a very powerful light in warm white tones.

Features and installation of RGBWW strips:

It is a very powerful strip as it provides a total of 96W over its 5 meters and 300 SMD5050 chips, so each meter has a power of 19.2W/m. and 60 chips. It offers approximately 150 lumens for every watt consumed, so if we install the complete 5 meters, we would get about 4800 lumens.

The steps to follow for the correct installation of the RGBW LED strip are exactly the same as for any other LED strip; the only difference is that we must use a specific controller for controlling the whites, both for illuminating in warm white tones and for shading the RGB colors.

In our LED lighting store, we have two types of RGBWW controllers (which also work for RGBW strips): one portable controller and a recessed touch controller. Additionally, it is essential the RGBW receiversince they operate via radio frequency and a 24V power supply suitable for the power of the installation to be performed. We also have the specific cables for RGBW/RGBWW strips and connectors.

We cannot forget that for a perfect installation of our LED strips, it is highly recommended to use aluminum profiles for LED strips for better heat dissipation and will help extend the lifespan of the LED strip. That’s not its only advantage, as it will provide a premium finish, and you have different diffusers to soften the light according to your needs. Integrating it into the profile is very simple and quick thanks to the 3M adhesive on the back of the strip.

Applications of the RGBWW LED strip:

- They are ideal for lighting and decorating music bars, nightclubs, restaurants, and hotels.

- Store and business lighting, to attract attention in windows or interiors, in addition to providing illumination.

- Home lighting and decoration.
